Rear Side Door Window Front Channel Replacement
| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Glass And Sheet Metal Handling Warning
.
WARNING:
Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedure Radio Rear Side Door Speaker Replacement |
|

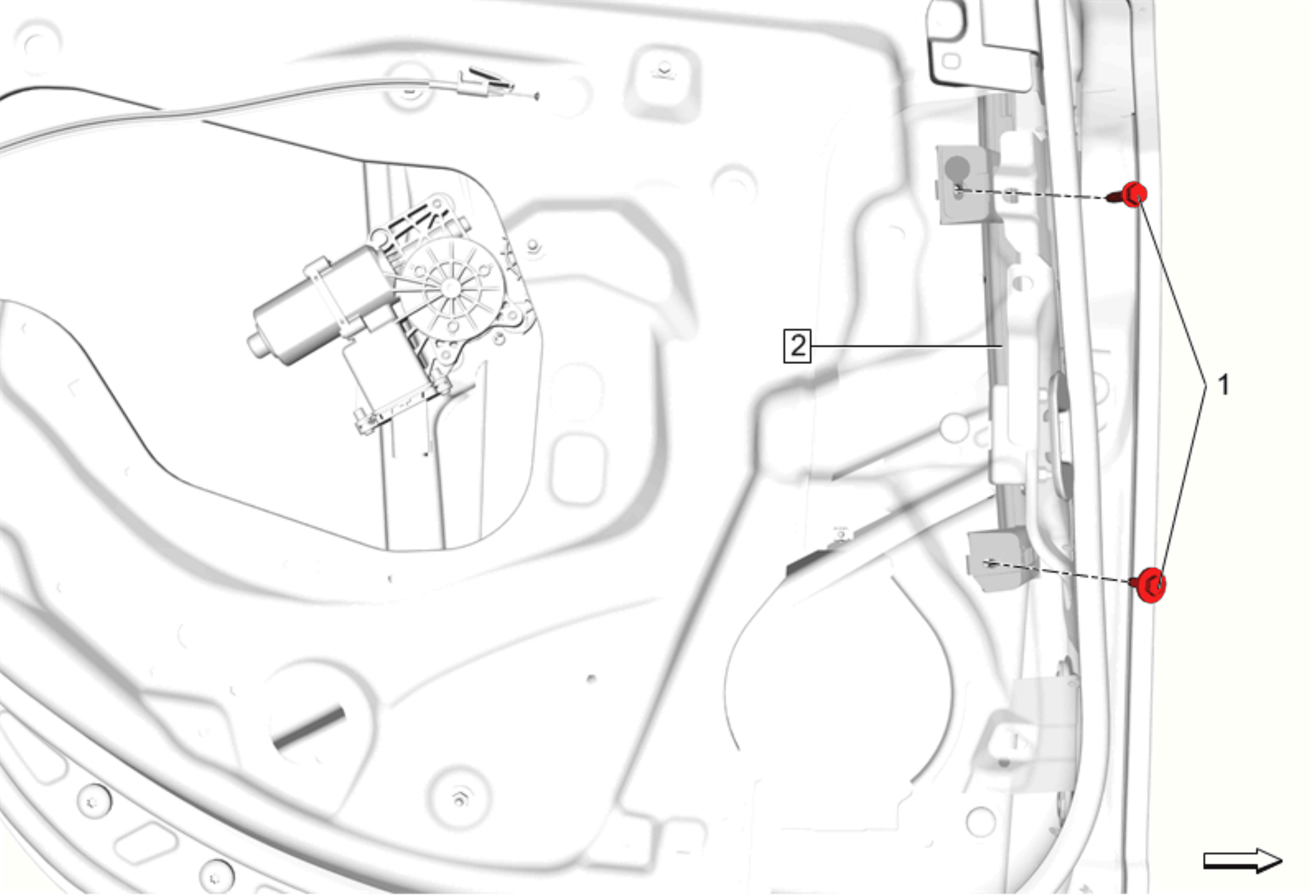

| 1 | Rear Side Door Window Front Channel Retainer Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
. Tighten 11 N.m (97 lb in) |
| 2 | Rear Side Door Window Front Channel Procedure Place the window in the full up position and tape in place.
NOTE:
Inspect the door window for proper operation before installing the door trim panel.
|
