Installation Procedure

  1. Battery Distribution Fuse Block Retaining Tab (1)» Engage

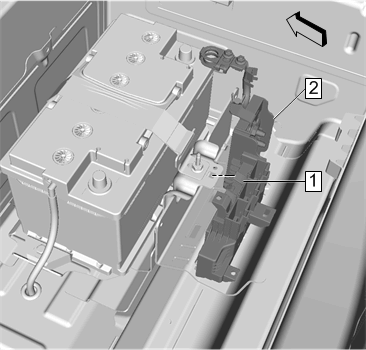

    Fig 1: Battery Distribution Fuse Block And Retaining Tab
    GM4477641Courtesy of GENERAL MOTORS COMPANY
  2. Battery Distribution Fuse Block (2)» Install
  3. Battery Positive Cable (2)» Install

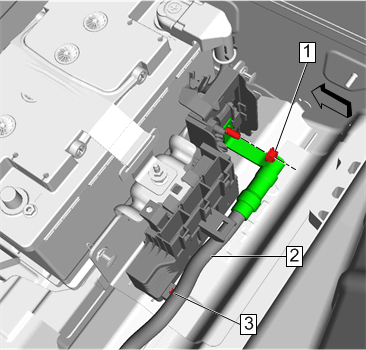

    Fig 2: Battery Positive Cable Nut
    GM4476251Courtesy of GENERAL MOTORS COMPANY
  4. Battery Positive Cable Nut (1)» Install and tighten 15 N.m (11 lb ft)
    CAUTION: Refer to Fastener Caution
  5. Retainer (3)» Engage
  6. Electrical Connector (1)» Connect [3x]

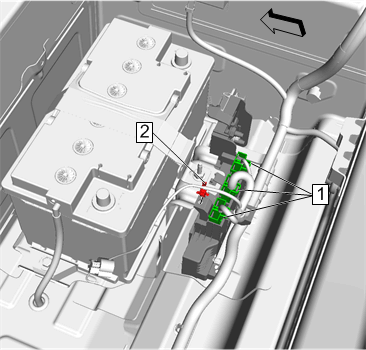

    Fig 3: Electrical Connectors And Retainer
    GM4477639Courtesy of GENERAL MOTORS COMPANY
  7. Retainer (2)» Engage
  8. Battery Positive Cable (3)» Install

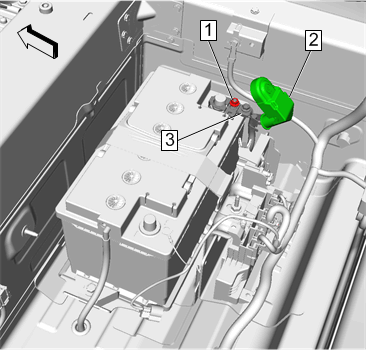

    Fig 4: Battery Positive Post Cover And Clamp Nut
    GM4475490Courtesy of GENERAL MOTORS COMPANY
  9. Battery Positive Post Clamp Nut (1)» Tighten 4.5 N.m (40 lb in)
  10. Battery Positive Post Cover (2)» Install
  11. Battery Distribution Fuse Block Cover (3)» Install

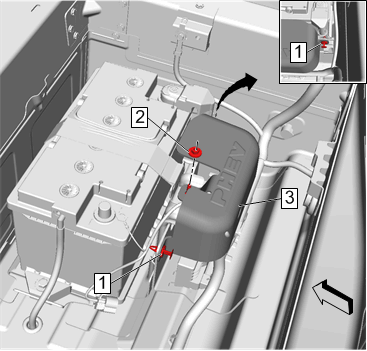

    Fig 5: Battery Distribution Fuse Block Cover
    GM4475465Courtesy of GENERAL MOTORS COMPANY
  12. Battery Distribution Fuse Block Cover Retainer (1)» Engage [2x]
  13. Battery Distribution Fuse Block Cover Fastener (2)» Install and tighten
  14. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection
  15. Rear Compartment Floor Panel Trim» Install - Rear Compartment Front Trim Replacement (Without HP9)
