Outside Rearview Mirror Gasket Replacement

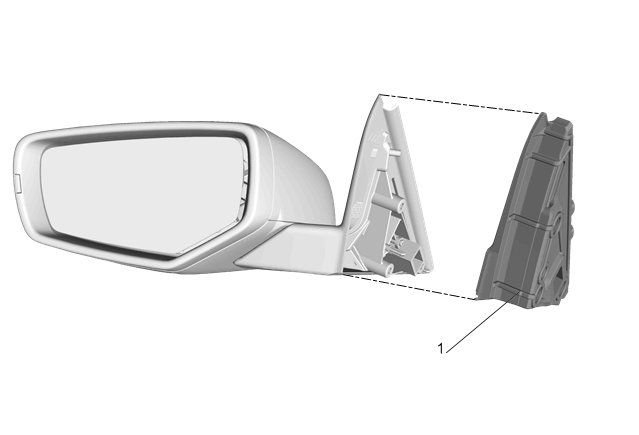

Fig 1: Outside Rearview Mirror Gasket
GM4248570Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Outside Rearview Mirror Replacement
1 Outside Rearview Mirror Gasket
NOTE: Inspect the mirror for proper operation before installing the door trim.
