Outside Rearview Mirror Remote Control Switch Replacement

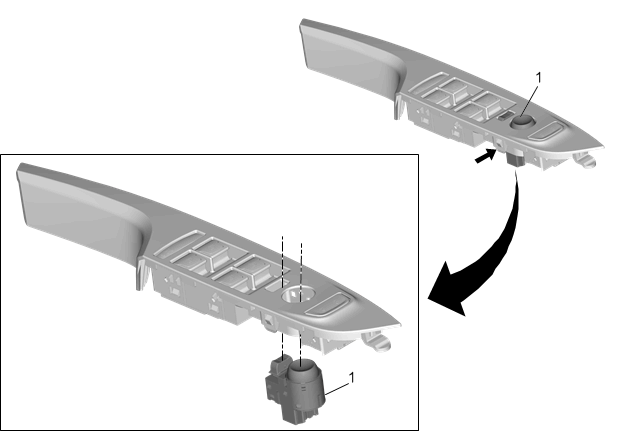

Fig 1: Outside Rearview Mirror Remote Control Switch
GM4248851Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Side Door Armrest Switch Mount Plate Replacement (Drivers Side)Front Side Door Armrest Switch Mount Plate Replacement (Passenger Side)
1 Outside Rearview Mirror Remote Control Switch

Procedure

  1. Release the switch assembly from the switch mount plate by depressing the tabs along each side of the switch.
  2. Control Module References for programming and setup information, if required.
