Outside Rearview Mirror Replacement

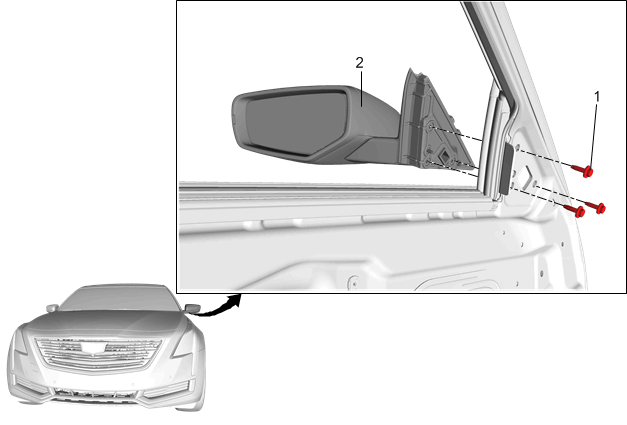

Fig 1: Outside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning Preliminary Procedures Front Side Door Window Garnish Molding Replacement Disconnect the electrical connector.
1	Outside Rearview Mirror Fastener [3x] CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Outside Rearview Mirror NOTE: Inspect the mirror for proper operation before installing the door trim.
