Hybrid Control Electronic Component Views

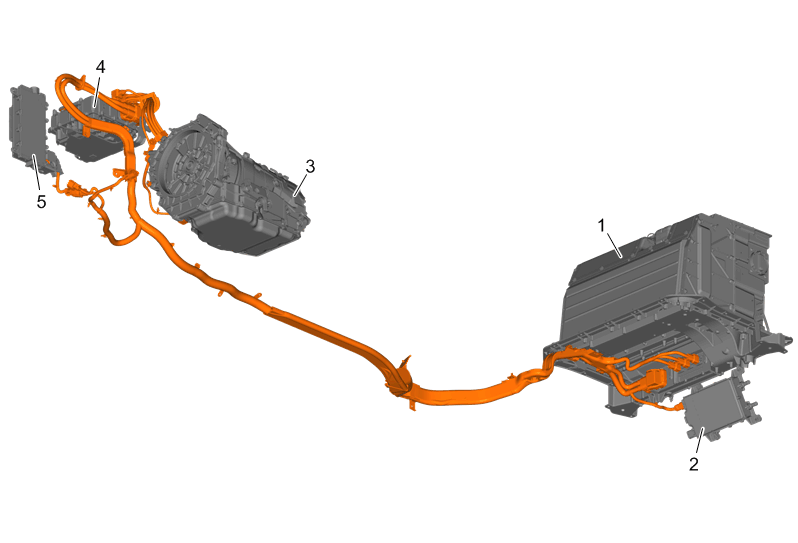

Fig 1: Hybrid Control Electronic Components
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
High Voltage Battery
2
T18 Battery Charger
3
T12 Automatic Transmission Assembly
4
T6 Power Inverter Module
5
K1 14V Power Module
