Battery Charger Output

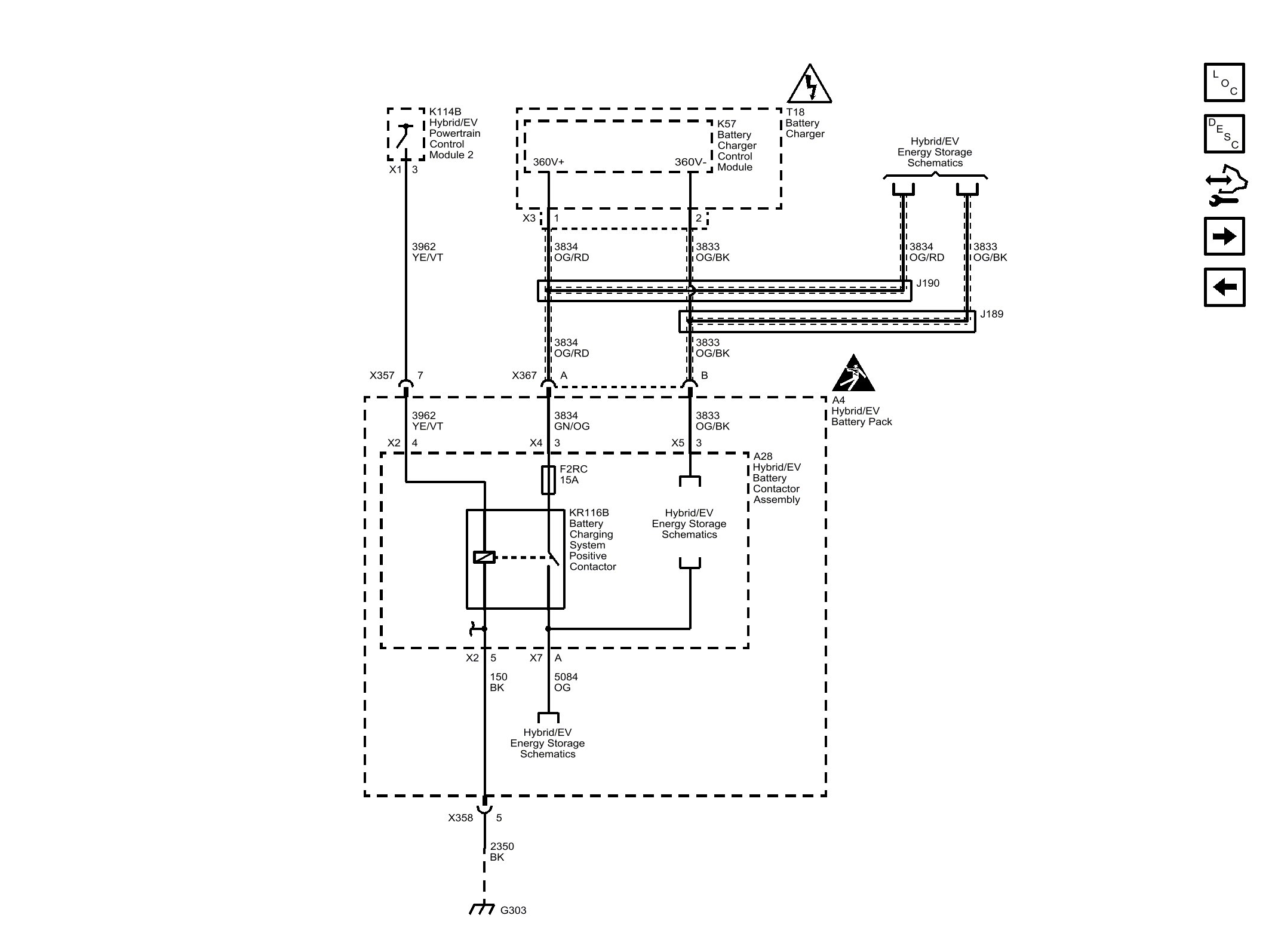

Fig 1: Battery Charger Output
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
