Retained Accessory Power Relays

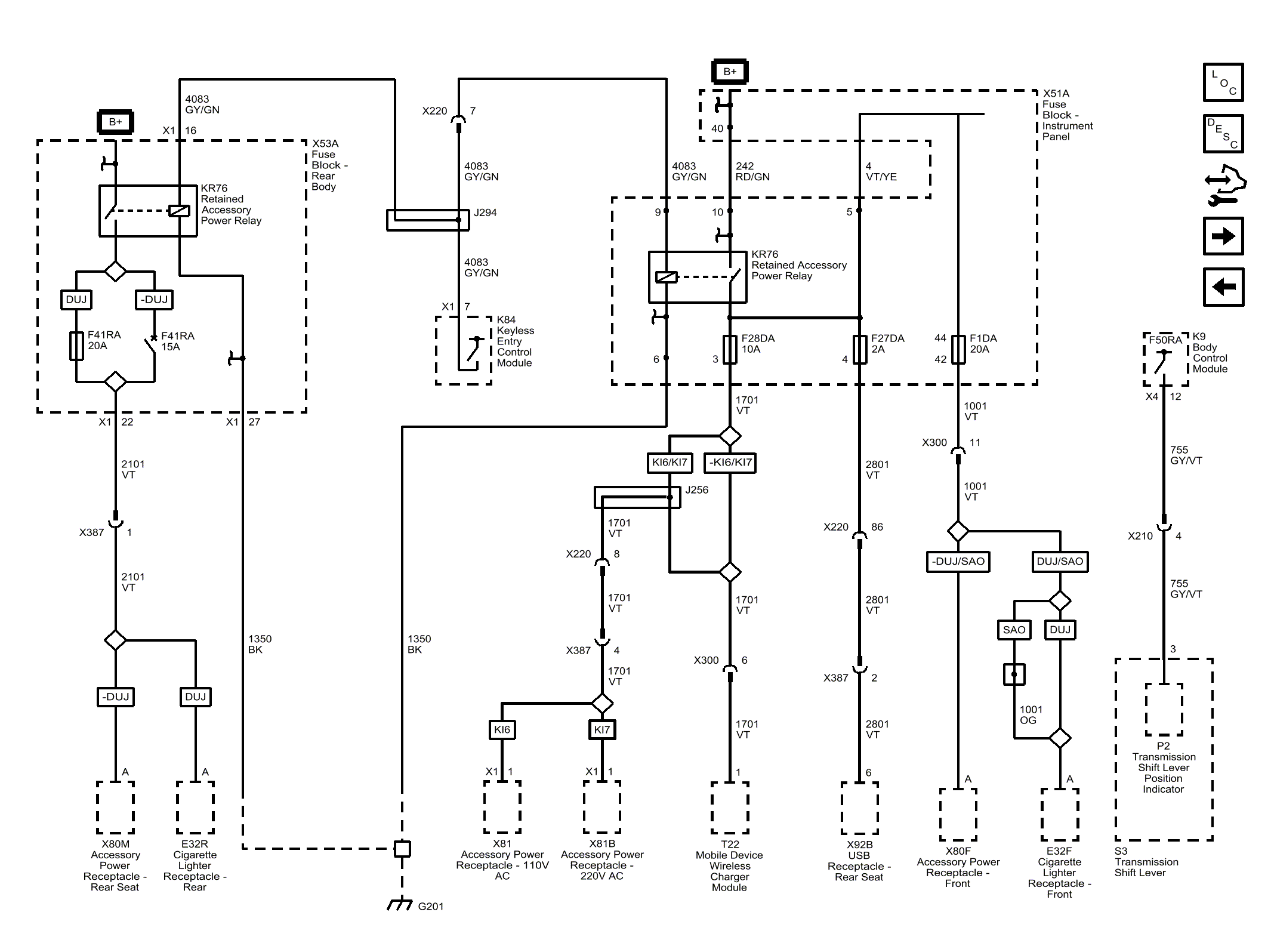

Fig 1: Retained Accessory Power Relays
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
