120-Volt Accessory Power Receptacle Replacement (Base)

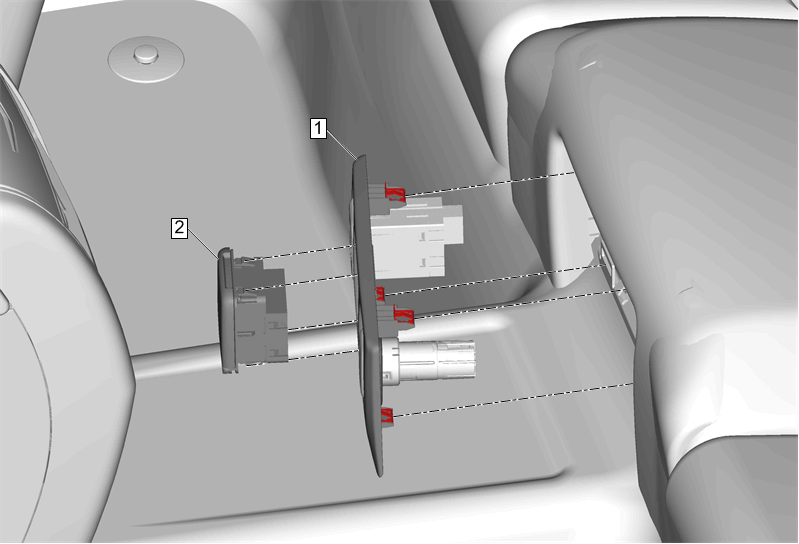

Fig 1: 120-Volt Accessory Power Receptacle (Base)
GM4255253Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 USB Receptacle Bezel

Procedure

  1. Use a flat bladed plastic tool to remove.
  2. Disconnect the electrical connectors.
2 Accessory Power Receptacle

Procedure

  1. Use a flat bladed plastic tool to remove.
  2. Unlock the retaining tabs.
