Accessory Power Receptacle Retainer Replacement

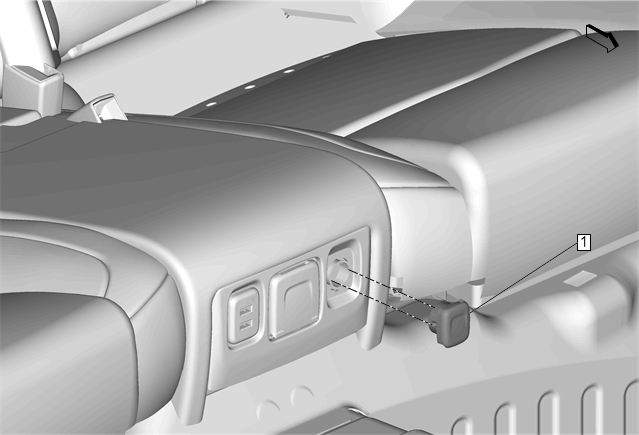

Fig 1: Accessory Power Receptacle Retainer
GM4255925Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Accessory Power Receptacle Replacement
1 Accessory Power Receptacle Retainer

Procedure

  1. Use a flat bladed plastic trim tool.
  2. Release the retaining tabs.
