Engine Compartment Components - Right

Engine Compartment Components - Right

Items
1. K20 Engine Control Module K20 Engine Control Module X1 (LGW)K20 Engine Control Module X1 (LGX)K20 Engine Control Module X1 (LTG+HP9)K20 Engine Control Module X1 (LTG+KL9)K20 Engine Control Module X2 (LGW)K20 Engine Control Module X2 (LGX)K20 Engine Control Module X2 (LTG+HP9)K20 Engine Control Module X2 (LTG+KL9)K20 Engine Control Module X3 (LGW)K20 Engine Control Module X3 (LGX)K20 Engine Control Module X3 (LTG+HP9)K20 Engine Control Module X3 (LTG+KL9)K20 Engine Control Module X4 (LGW)
2. K69 Transfer Case Control Module (F46) K69 Transfer Case Control Module X1 (F46)
3. K71 Transmission Control Module K71 Transmission Control Module (HP9)K71 Transmission Control Module (KL9)
4. B108 Air Quality Sensor B108 Air Quality Sensor (HP9)
5. F100R Hood Hinge Actuator - Right (B3T) F100R Hood Hinge Actuator - Right (B3T)
6. Q37RF Shock Absorber Actuator - Right Front (F55) Q37RF Shock Absorber Actuator - Right Front (F55)

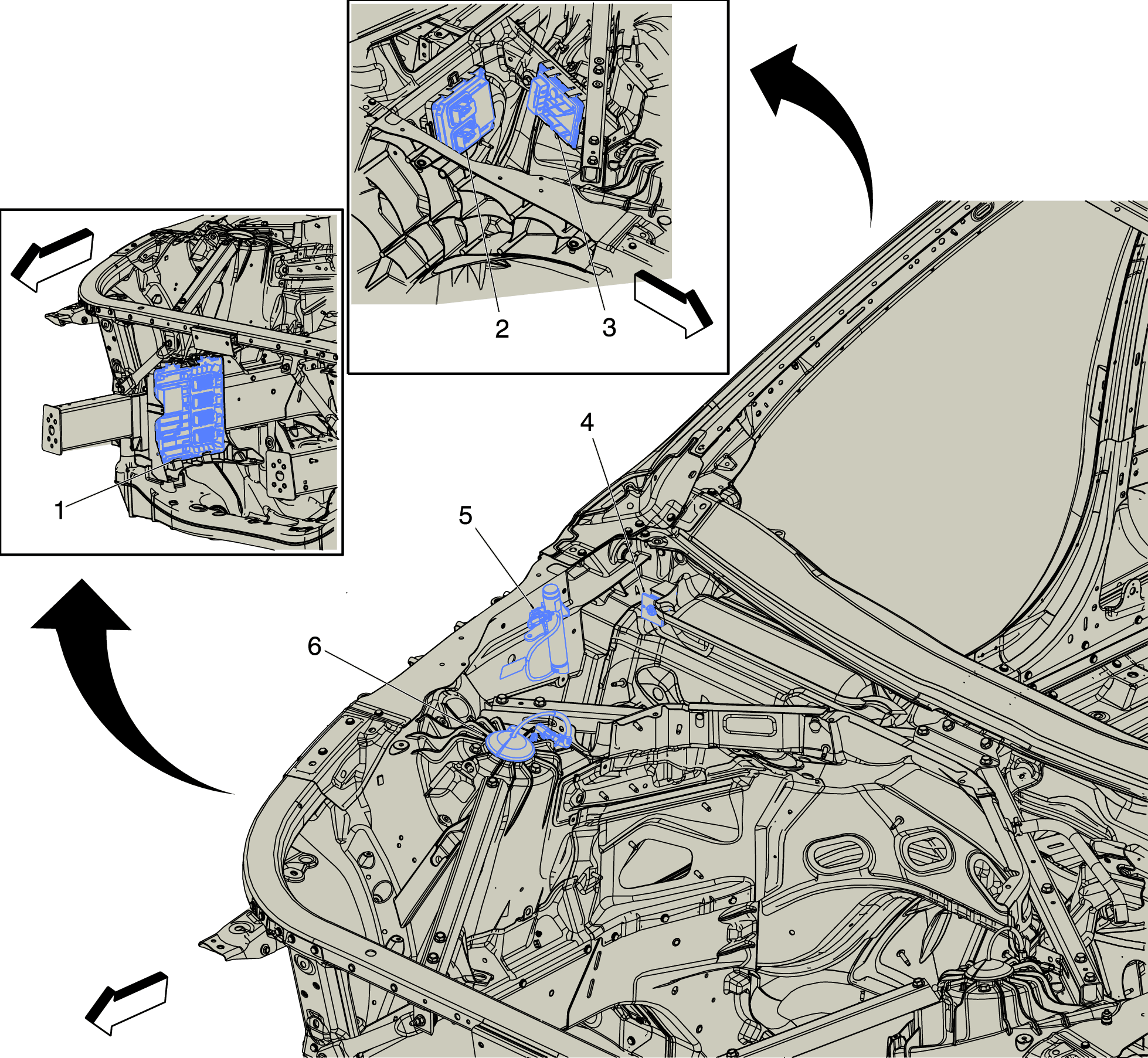

Fig 1: Engine Compartment Components - Right
GM4218180Courtesy of GENERAL MOTORS COMPANY
