Front of Vehicle Components - Front
Front of Vehicle Components - Front

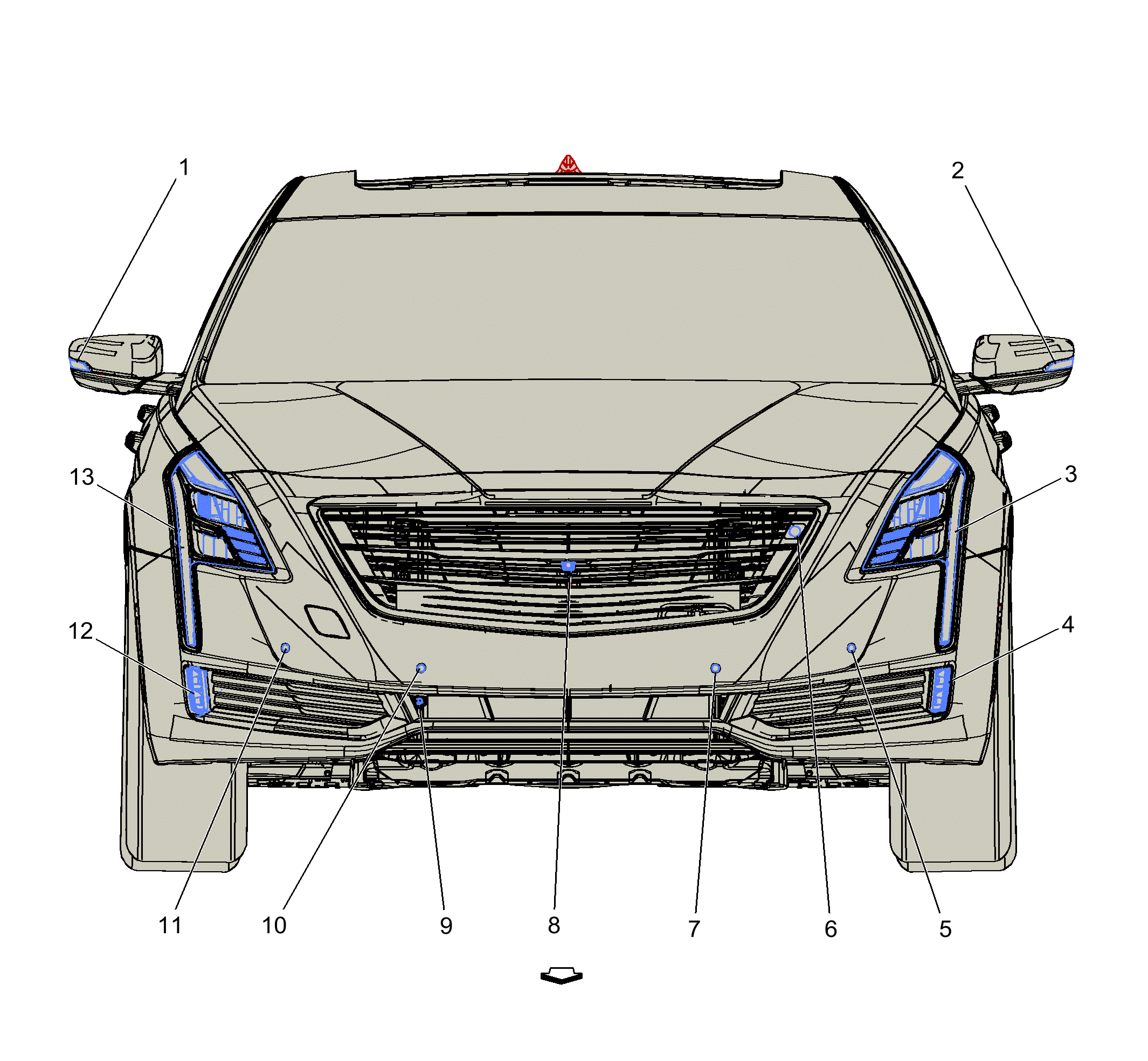

| Items |
|---|
| 1. E4Z Turn Signal Repeater Lamp - Right |
| 2. E4Y Turn Signal Repeater Lamp - Left |
| 3. E13LA Headlamp Assembly - Left |
| 4. E4A Cornering Lamp - Left (T87) E4A Cornering Lamp - Left (T87) |
| 5. B306A Parking Assist Sensor - Front Left Outer B78A Front Object Sensor - Left Outer |
| 6. B276 Night Vision Camera (UV3) B276 Night Vision Camera (UV3) |
| 7. B306B Parking Assist Sensor - Front Left Middle B78C Front Object Sensor - Left Middle |
| 8. B174G Frontview Camera - Grille (UVH) B174G Frontview Camera - Grille (UVH) |
| 9. B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor |
| 10. B306C Parking Assist Sensor - Front Right Middle B78D Front Object Sensor - Right Middle |
| 11. B306D Parking Assist Sensor - Front Right Outer B78B Front Object Sensor - Right Outer |
| 12. E4B Cornering Lamp - Right (T87) E4B Cornering Lamp - Right (T87) |
| 13. E13RA Headlamp Assembly - Right |
