Engine Components - Left Front (LGW)

Items
1. Q84A Camshaft Position Actuator Park Lock Solenoid Valve - Bank 1 Intake (LGW/LGX) Q84A Camshaft Position Actuator Park Lock Solenoid Valve - Bank 1 Intake (LGW/LGX)
2. Q40A Turbocharger 1 Bypass Solenoid Valve (LGW) Q40A Turbocharger 1 Bypass Solenoid Valve (LGW)
3. Q40B Turbocharger 2 Bypass Solenoid Valve (LGW) Q40B Turbocharger 2 Bypass Solenoid Valve (LGW)
4. Q84B Camshaft Position Actuator Park Lock Solenoid Valve - Bank 2 Intake (LGW/LGX) Q84B Camshaft Position Actuator Park Lock Solenoid Valve - Bank 2 Intake (LGW/LGX)
5. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (LGW/LGX)B37B Engine Oil Pressure Sensor (LTG)
6. Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve (KL9)
7. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch (KL9)Q2 A/C Compressor Clutch (LTG+HP9)
8. G1 A/C Compressor G1 A/C Compressor X1 (HP9)G1 A/C Compressor X2 (HP9)
9. B35 Engine Oil Level Switch B35 Engine Oil Level Switch (LGW/LGX)B35 Engine Oil Level Switch (LTG)
10. G17 Heater Coolant Pump G17 Heater Coolant Pump (LGW/LGX/(LTG+KL9))
11. G13 Generator G13 Generator X1 (KL9)G13 Generator X2 (KL9)

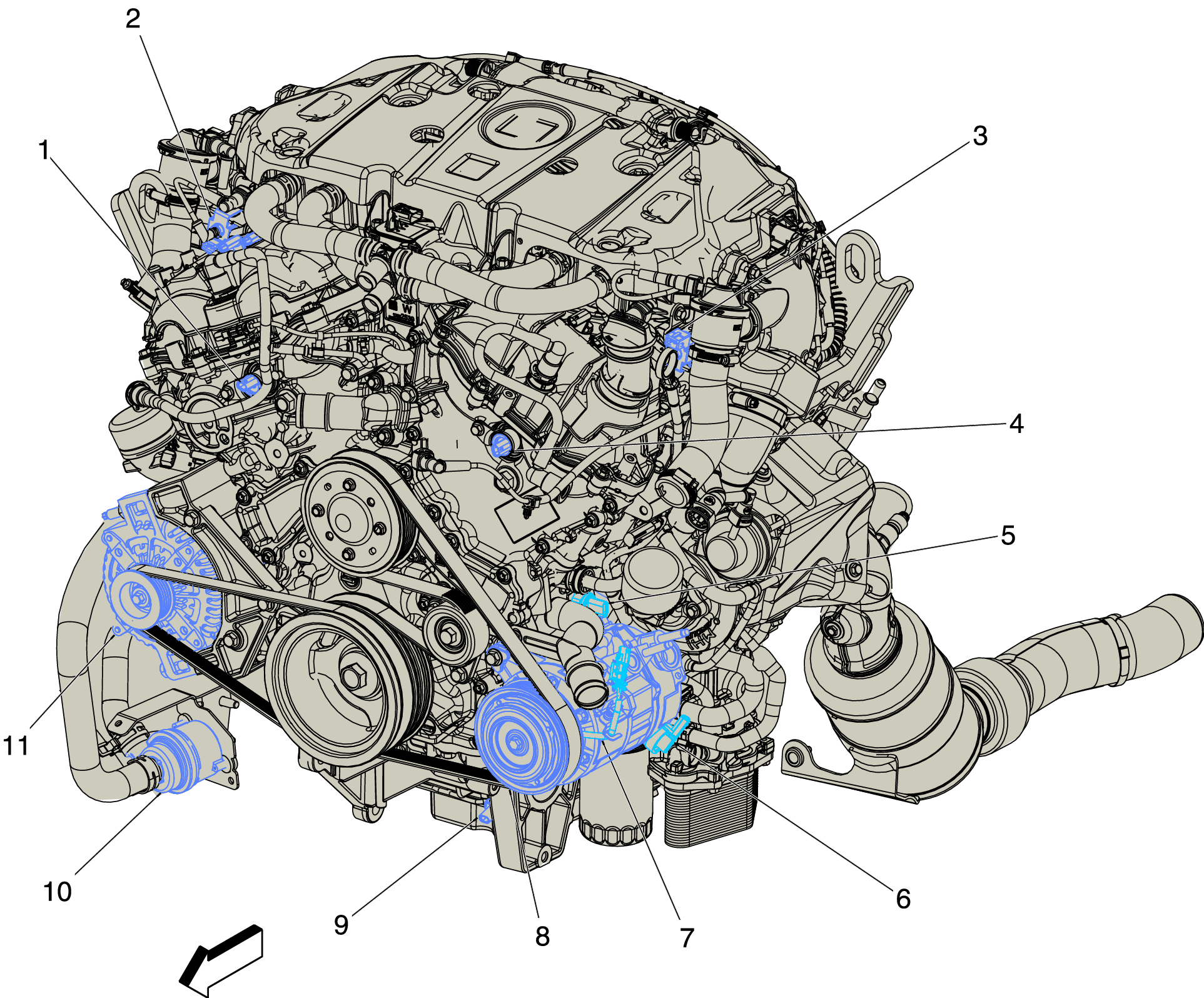

Fig 1: Engine Components - Left Front (LGW)

Courtesy of GENERAL MOTORS COMPANY
