Engine Components - Left Front (LGX)

Items
1. B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor (LGW)B75C Multifunction Intake Air Sensor (LGX)B75C Multifunction Intake Air Sensor (LTG)
2. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve
3. Q38 Throttle Body Q38 Throttle Body (LGW)Q38 Throttle Body (LGX/LTG)
4. Q84B Camshaft Position Actuator Park Lock Solenoid Valve - Bank 2 Intake (LGW/LGX) Q84B Camshaft Position Actuator Park Lock Solenoid Valve - Bank 2 Intake (LGW/LGX)
5. Q83B Valve Lifter Oil Solenoid Valve - Bank 2 (LGW/LGX) Q83B Valve Lifter Oil Solenoid Valve - Bank 2 (LGW/LGX)
6. B37B Engine Oil Pressure Sensor B37B Engine Oil Pressure Sensor (LGW/LGX)B37B Engine Oil Pressure Sensor (LTG)
7. B68B Knock Sensor 2 B68B Knock Sensor 2 (LGW)B68B Knock Sensor 2 (LGX/LTG)
8. M64 Starter Motor M64 Starter Motor (LGW)M64 Starter Motor (LGX/(LTG+KL9))
9. G1 A/C Compressor G1 A/C Compressor X1 (HP9)G1 A/C Compressor X2 (HP9)
10. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch (KL9)Q2 A/C Compressor Clutch (LTG+HP9)
11. Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve (KL9)
12. B35 Engine Oil Level Switch B35 Engine Oil Level Switch (LGW/LGX)B35 Engine Oil Level Switch (LTG)
13. G17 Heater Coolant Pump G17 Heater Coolant Pump (LGW/LGX/(LTG+KL9))
14. G13 Generator G13 Generator X1 (KL9)G13 Generator X2 (KL9)
15. Q84A Camshaft Position Actuator Park Lock Solenoid Valve - Bank 1 Intake (LGW/LGX) Q84A Camshaft Position Actuator Park Lock Solenoid Valve - Bank 1 Intake (LGW/LGX)

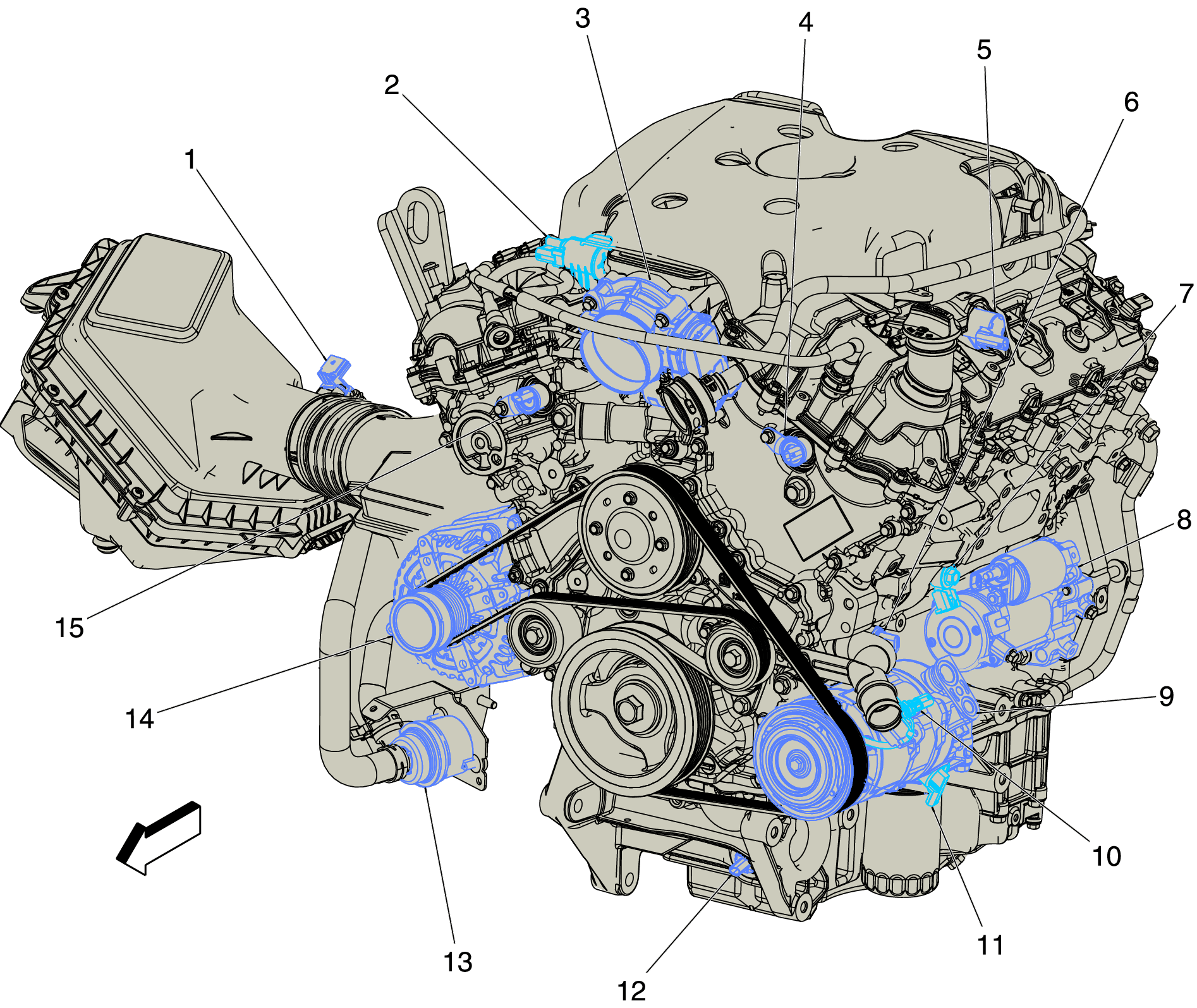

Fig 1: Engine Components - Left Front (LGX)

Courtesy of GENERAL MOTORS COMPANY
