Engine Components - Rear (LGX)

Items
1. B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LGW/LGX) B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LGW)B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LGX)
2. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LGW/LGX)B74 Manifold Absolute Pressure Sensor (LTG+(HP9/KL9))
3. Q83A Valve Lifter Oil Solenoid Valve - Bank 1 (LGW/LGX) Q83A Valve Lifter Oil Solenoid Valve - Bank 1 (LGW/LGX)
4. G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump (LTG)
5. B68A Knock Sensor 1 B68A Knock Sensor 1 (LGW)B68A Knock Sensor 1 (LGX/LTG)
6. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LGW)B26 Crankshaft Position Sensor (LGX)B26 Crankshaft Position Sensor (LTG)
7. B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LGW/LGX) B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LGW)B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LGX)
8. B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LGW/LGX) B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LGW/LGX)
9. B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LGW/LGX) B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LGW/LGX)

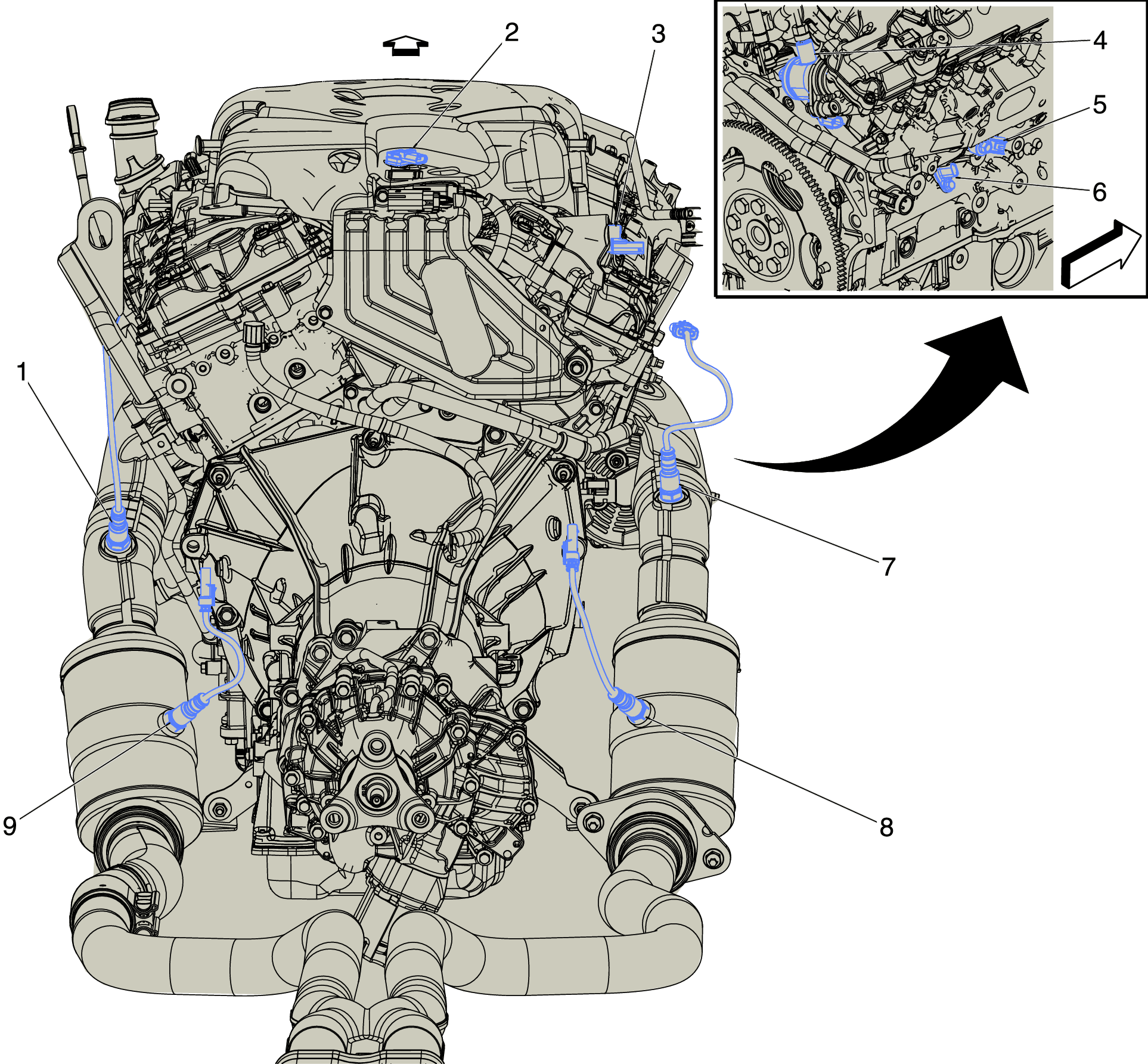

Fig 1: Engine Components - Rear (LGX)

Courtesy of GENERAL MOTORS COMPANY
