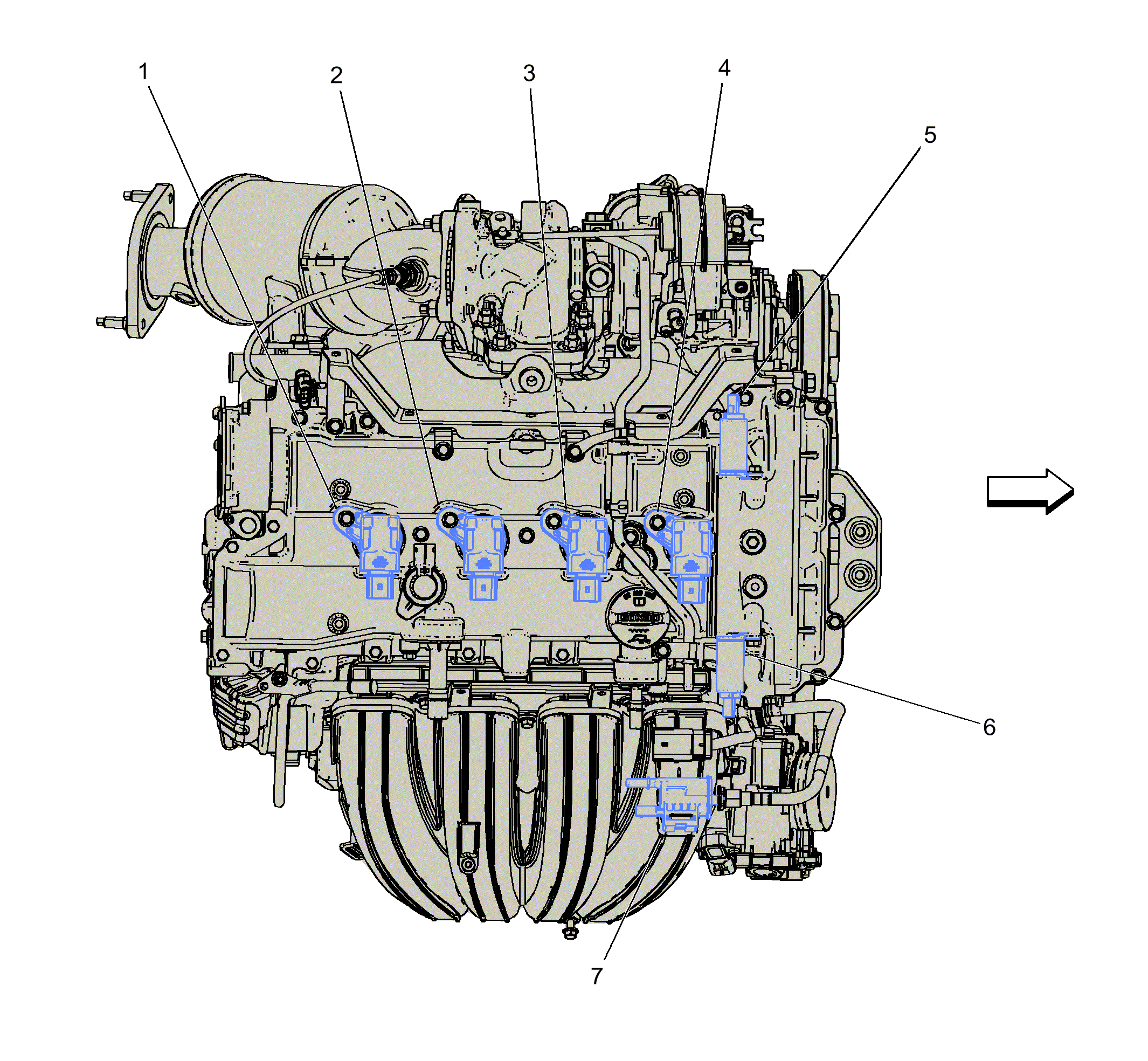

Engine Components - Top (LTG)
Engine Components - Top (LTG)
| Items |
|---|
| 1. T8D Ignition Coil 4 T8D Ignition Coil 4 (LGW/LGX)T8D Ignition Coil 4 (LTG) |
| 2. T8C Ignition Coil 3 T8C Ignition Coil 3 (LGW/LGX) |
| 3. T8B Ignition Coil 2 T8B Ignition Coil 2 (LGW/LGX)T8B Ignition Coil 2 (LTG)T8B Ignition Coil 2 (LTG+KL9) |
| 4. T8A Ignition Coil 1 T8A Ignition Coil 1 (LGW/LGX)T8A Ignition Coil 1 (LTG) |
| 5. Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LTG) Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LTG) |
| 6. Q6F Camshaft Position Actuator Solenoid Valve - Intake (LTG) Q6F Camshaft Position Actuator Solenoid Valve - Intake (LTG) |
| 7. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
