Ambient Air Temperature Sensor Replacement

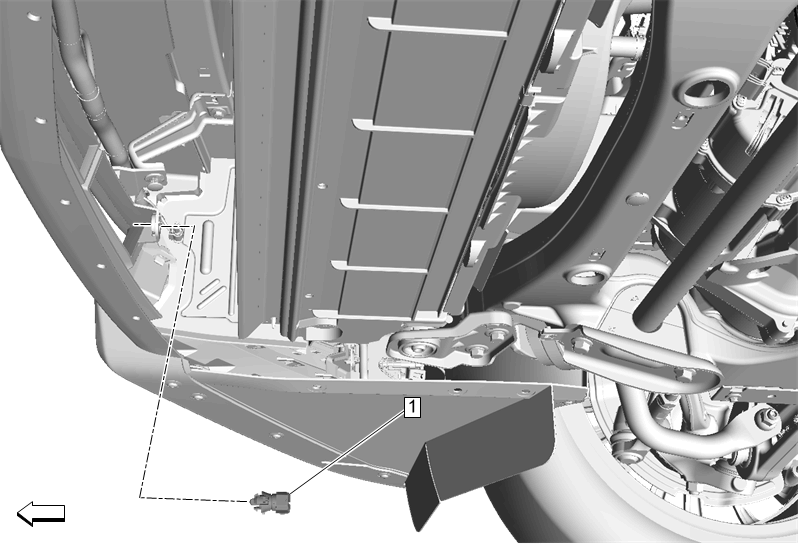

Fig 1: Ambient Air Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Lower Stiffener Replacement
1	Ambient Air Temperature Sensor Procedure Disconnect the electrical connector. Squeeze the ambient air temperature sensor tabs, to release the sensor.

Callout

Component Name

Ambient Air Temperature Sensor

Procedure
