Instrument Cluster Replacement

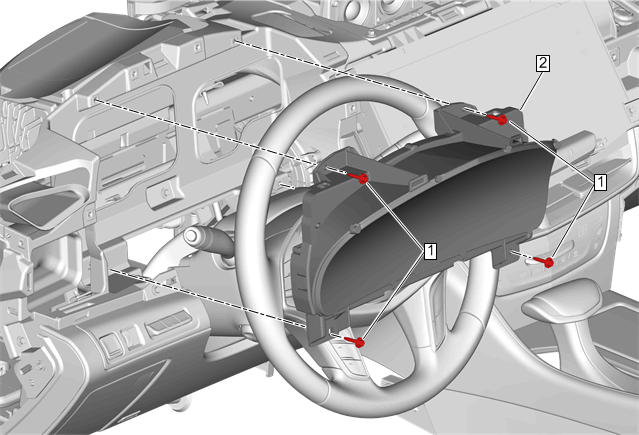

| Callout | Component Name |
|---|---|
| Preliminary Procedure Instrument Panel Cluster Trim Plate Replacement |
|
| 1 | Instrument Cluster Bolt [4x]
CAUTION:
Refer to Fastener Caution
. Tighten 2.5 N.m (22 lb in) |
| 2 | Instrument Cluster Procedure
|
