Air Cleaner Assembly Replacement

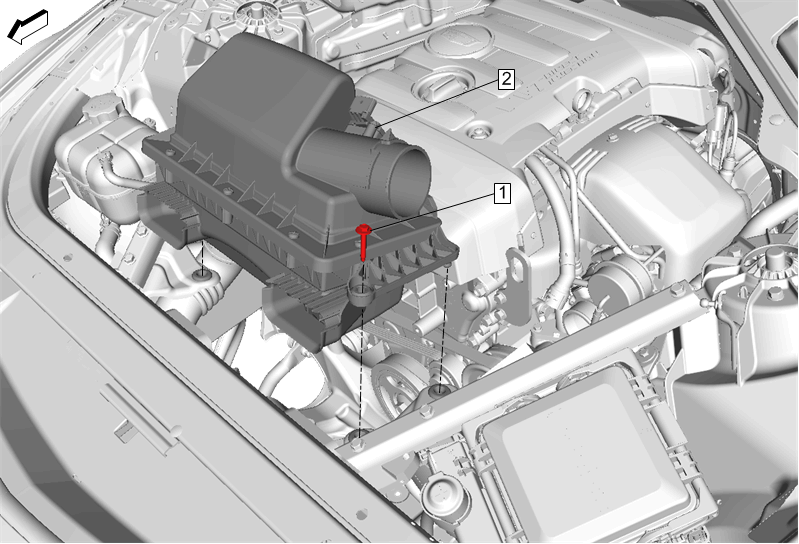

Fig 1: Air Cleaner Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Air Cleaner Outlet Duct Replacement Intake Air Duct Replacement Disconnect the electrical connector.
1	Air Cleaner Assembly Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Air Cleaner Assembly Procedure Remove the air cleaner housing from the retainers. Transfer parts as necessary.

Callout

Component Name

Preliminary Procedures

Air Cleaner Assembly Fastener

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Air Cleaner Assembly

Procedure
