Air Cleaner Outlet Duct Replacement

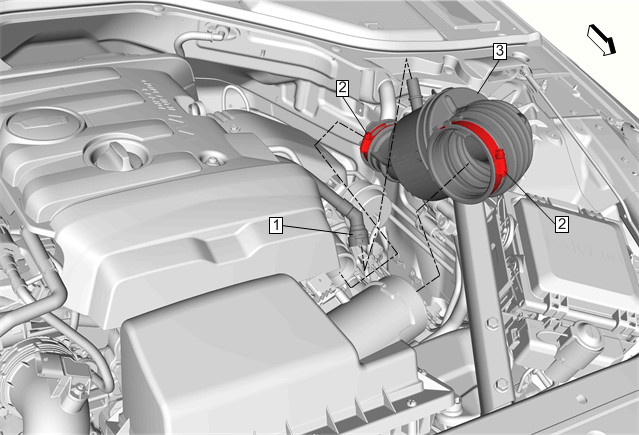

| Callout | Component Name |
|---|---|
| 1 | Positive Crankcase Ventilation Tube Procedure Positive Crankcase Ventilation Hose/Pipe/Tube Replacement
NOTE:
The Positive Crankcase Ventilation (PCV) tube has a tamper-proof fitting and cannot be disconnected without damage to the PCV tube. Only disconnect the PCV tube if replacing the air cleaner outlet duct. If repositioning the air cleaner outlet duct, leave the PCV tube connected.
|
| 2 | Air Cleaner Outlet Duct Clamp [2x]
CAUTION:
Refer to Fastener Caution
.
NOTE:
Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under. Tighten 4 N.m (35 lb in) |
| 3 | Air Cleaner Outlet Duct |
