Charge Air Cooler Radiator Replacement

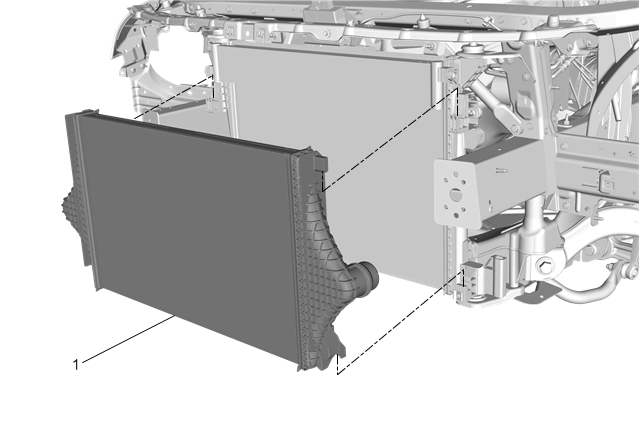

Fig 1: Charge Air Cooler Radiator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Air Conditioning Condenser Bracket Replacement Charge Air Cooler Outlet Air Tube Replacement @ Charge Air Cooler Radiator» Remove Charge Air Cooler Inlet Air Tube Replacement @ Charge Air Cooler Radiator» Remove
1	Charge Air Cooler Radiator Procedure Unclip charge air cooler radiator from retainers.

Callout

Component Name

Preliminary Procedures

Charge Air Cooler Radiator
Procedure
Unclip charge air cooler radiator from retainers.
