Engine Coolant Temperature Sensor Replacement
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Coolant Temperature Sensor Replacement

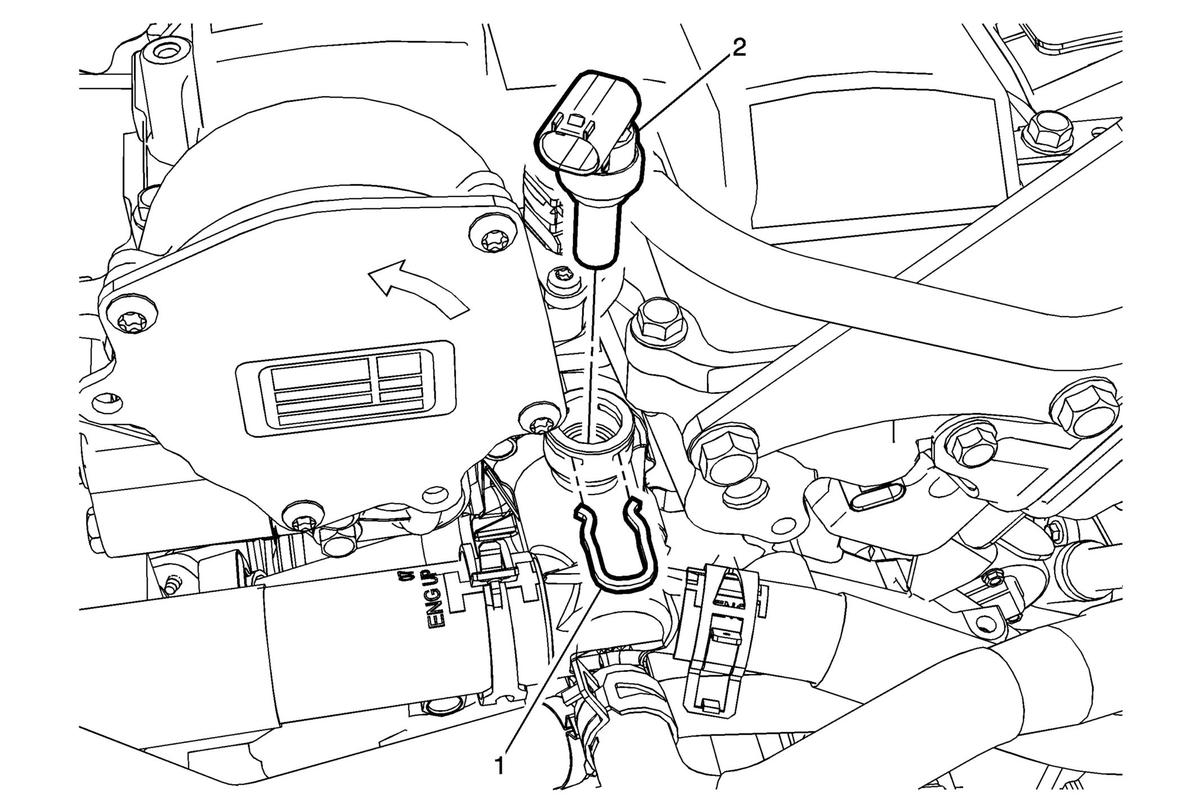

Fig 1: Engine Coolant Temperature Sensor
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedures
Cooling System Draining and Filling (Static without HP9)
Cooling System Draining and Filling (GE 47716 without HP9)
Cooling System Draining and Filling (Static LTG with HP9)
Cooling System Draining and Filling (GE 47716 LTG with HP9)
Intake Manifold Cover Replacement
Fuel Pump Insulator Replacement
1
Engine Coolant Temperature Sensor Clip
2
Engine Coolant Temperature Sensor
Procedure
Disconnect the electrical connector.
Install a NEW engine coolant temperature sensor seal ring.
