Fuel Feed Hose Replacement

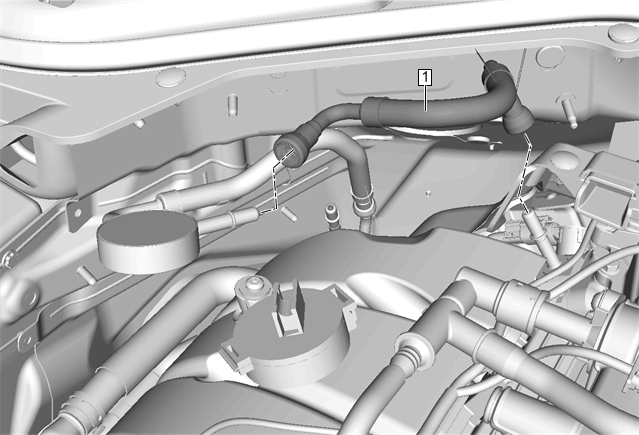

Fig 1: Fuel Feed Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Intake Manifold Cover Replacement Relieve the fuel system pressure. Refer to Fuel Pressure Relief Remove the fuel injection fuel feed pipe dampener from the fuel injection fuel feed pipe dampener clip bracket. Refer to Fuel Injection Fuel Feed Pipe Dampener Replacement
1	Fuel Feed Pipe WARNING: Refer to Gasoline/Gasoline Vapors Warning . Procedure Quick Connect Fitting» Disconnect [2x] - Metal Collar Quick Connect Fitting Service

Callout

Component Name

Preliminary Procedures

Intake Manifold Cover Replacement
Relieve the fuel system pressure. Refer to Fuel Pressure Relief
Remove the fuel injection fuel feed pipe dampener from the fuel injection fuel feed pipe dampener clip bracket. Refer to Fuel Injection Fuel Feed Pipe Dampener Replacement

Fuel Feed Pipe

WARNING: Refer to Gasoline/Gasoline Vapors Warning .

Procedure
Quick Connect Fitting» Disconnect [2x] - Metal Collar Quick Connect Fitting Service
