Fuel Feed Intermediate Pipe Replacement

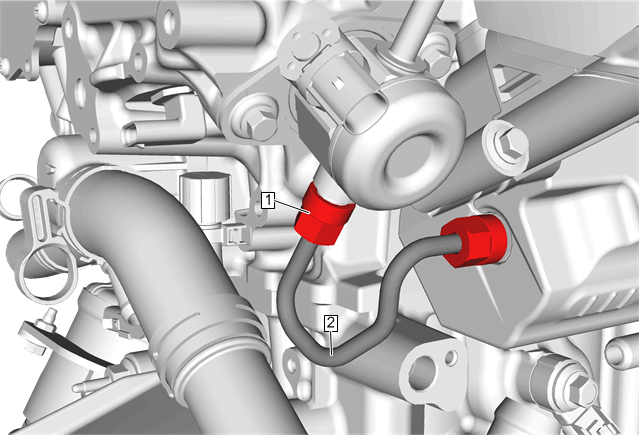

Fig 1: Fuel Feed Intermediate Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Gasoline/Gasoline Vapors Warning . Preliminary Procedures Fuel Pump Cover Replacement Fuel Pressure Relief
1	Fuel Feed Intermediate Pipe Fitting [2x] CAUTION: Refer to Component Fastener Tightening Caution . Procedure Hand start both ends of the NEW fuel feed intermediate pipe. Tighten Tighten the fitting nut to the fuel rail to 15 N.m (11 lb ft). Tighten the fitting nut to the fuel pump to 15 N.m (11 lb ft). Tighten the fitting nut to the fuel rail a final pass to 30 N.m (22 lb ft). Tighten the fitting nut to the fuel pump a final pass to 30 N.m (22 lb ft).
2	Fuel Feed Intermediate Pipe NOTE: The threaded fuel pipes are one time use, always install a NEW fuel pump intermediate pipe.

Callout

Component Name

WARNING: Refer to Gasoline/Gasoline Vapors Warning .

Preliminary Procedures

Fuel Feed Intermediate Pipe Fitting [2x]

CAUTION: Refer to Component Fastener Tightening Caution .

Procedure
Hand start both ends of the NEW fuel feed intermediate pipe.
Tighten

Fuel Feed Intermediate Pipe

NOTE: The threaded fuel pipes are one time use, always install a NEW fuel pump intermediate pipe.
