Fuel Pump Power Control Module Replacement

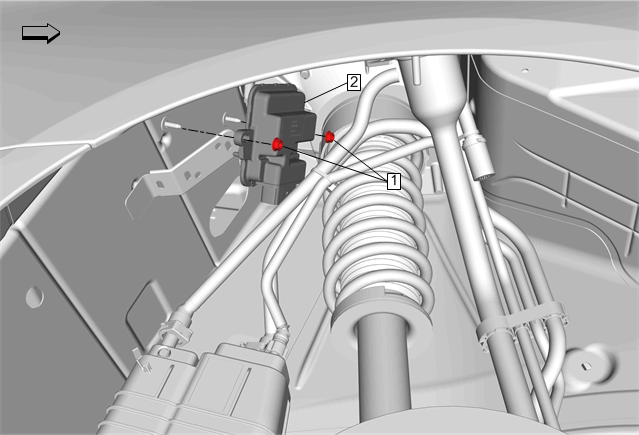

Fig 1: Fuel Pump Power Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Wheelhouse Liner Replacement (LTG)
1	Fuel Pump Power Control Module Fastener [2x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Fuel Pump Power Control Module Procedure Disconnect the electrical connector. If replacing, reprogram the module. Refer to Control Module References

Callout

Component Name

Fuel Pump Power Control Module Fastener [2x]

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Fuel Pump Power Control Module

Procedure
