Intake Air Pressure and Temperature Sensor Replacement

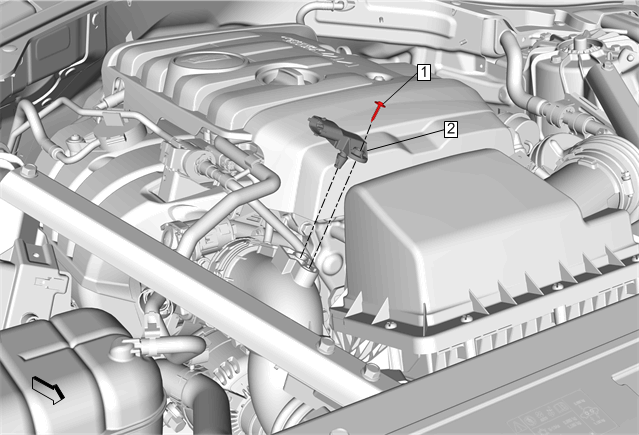

Fig 1: Intake Air Pressure and Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Intake Air Pressure and Temperature Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten  4 N.m (35 lb in)
2	Intake Air Pressure and Temperature Sensor Procedure  Disconnect the electrical connector.
