Manifold Absolute Pressure Sensor Replacement

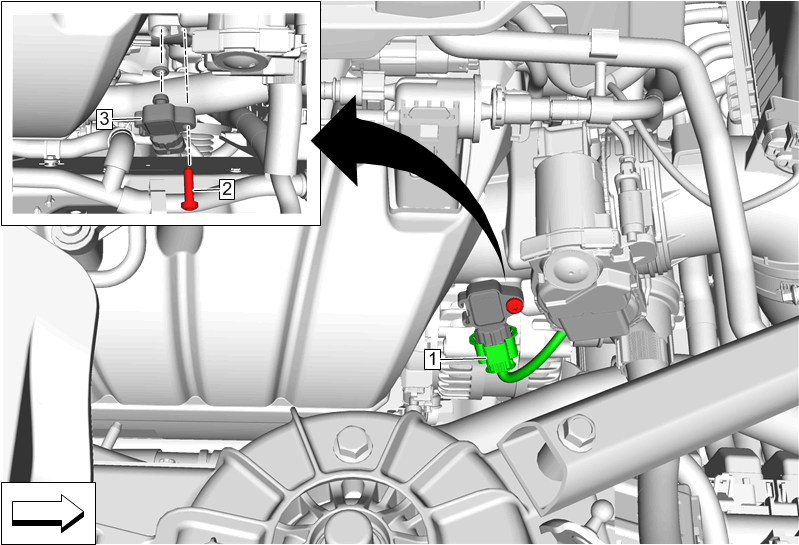

Fig 1: Manifold Absolute Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Electrical Connector
2	Manifold Absolute Pressure Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 5 N.m (44 lb in)
3	Manifold Absolute Pressure Sensor NOTE: Inspect the O-ring and replace if necessary.
