Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

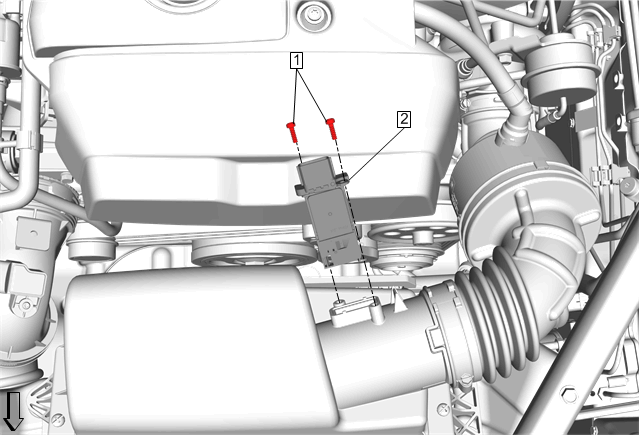

Fig 1: Mass Airflow Sensor with Intake Air Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Mass Airflow Sensor Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  4 N.m (35 lb in)
2	Mass Airflow Sensor Procedure  Disconnect the electrical connector.
