Oil Pump Flow Control Valve Heat Shield Replacement

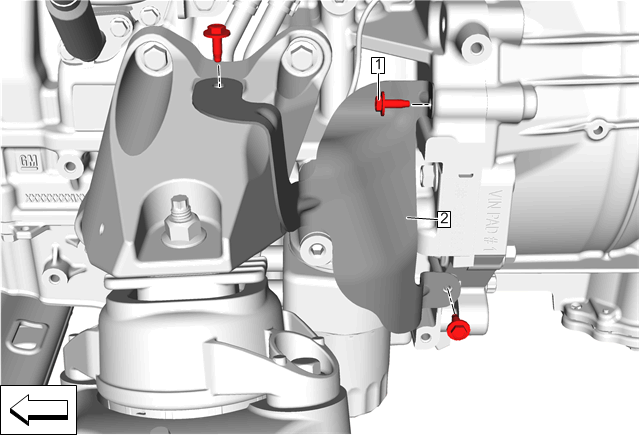

Fig 1: Oil Pump Flow Control Valve Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drivetrain and Front Suspension Cradle Plate Replacement Warm Up Three-Way Catalytic Converter Replacement (LTG)
1	Oil Pump Flow Control Valve Heat Shield Fastener [3x] CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Oil Pump Flow Control Valve Heat Shield

Callout

Component Name

Preliminary Procedures

Oil Pump Flow Control Valve Heat Shield Fastener [3x]

CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Oil Pump Flow Control Valve Heat Shield
