Vacuum Pump Replacement

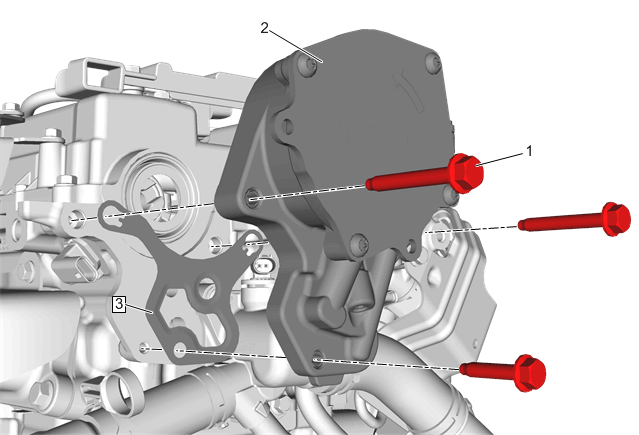

Fig 1: Vacuum Pump

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Fuel Pump Insulator Replacement Vacuum Hose @ Vacuum Pump» Disconnect - Power Brake Booster Vacuum Hose Replacement (LTG) Wiring Harness Retainer @ Vacuum Pump - Disconnect
1	Vacuum Pump Fastener [3x] CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Vacuum Pump Procedure Lubricate the vacuum pump seal with clean engine oil. Refer to Adhesives, Fluids, Lubricants and Sealers
3	Vacuum Pump Gasket NOTE: Install a NEW vacuum pump gasket.
