Engine Identification Number Requested When Programming ECM (PIP5597)

WARNING: This page is about the CT6 Base, 2.0L Eng VIN X, which is a different variant/trim than selected.

Publication date: 2018-10-08
Reference number: PIP5597

ENGINE IDENTIFICATION NUMBER REQUESTED WHEN PROGRAMMING ECM

TECHNICAL SERVICE BULLETIN

Reference Number(s): PIP5597, Date of Issue: Oct 8, 2018

SERVICE INFORMATION

Brand:	Model:	Model Year:		VIN:		Engine:	Transmission:
Brand:	Model:	from	to	from	to	Engine:	Transmission:
Buick	Regal	2014-2019		All	All	2.0 LTG, 2.5 LCV, 2.5 LKW	All
Buick	Envision	2015-2019		All	All	2.0 LTG, 2.5 LCV	All
Buick	LaCrosse	2017-2019		All	All	2.0 LTG	All
Cadillac	ATS	2013-2019		All	All	2.0 LTG, 2.5 LCV	All
Cadillac	CT6	2016-2018		All	All	2.0 LTG	All
Cadillac	CTS	2014-2019		All	All	2.0 LTG	All
Cadillac	XT5	2017-2019		All	All	2.0 LTG	All
Cadillac	XTS	2014-2019		All	All	2.0 LTG	All
Chevrolet	Blazer	2019		All	All	2.5 LCV	All
Chevrolet	Colorado	2015-2019		All	All	2.0 LTG	All
Chevrolet	Equinox	2018-2019		All	All	2.0 LTG	All
Chevrolet	Malibu	2013-2019		All	All	2.0 LTG, 2.5 LCV, 2.5 LKW	All
Chevrolet	Impala	2014-2019		All	All	2.0 LTG, 2.5 LCV, 2.5 LKW	All
Chevrolet	Traverse	2018-2019		All	All	2.0 LTG, 2.5 LCV, 2.5 LKW	All
GMC	Acadia	2017-2019		All	All	2.5 LCV	All
GMC	Canyon	2015-2019		All	All	2.5 LCV	All
GMC	Terrain	2018-2019		All	All	2.0 LTG	All

Involved Region or Country	North America
Condition	During the programming of some ECM's, the technician may be prompted to input the engine identification number.
Cause	This is being done for calibration to engine tracking purposes.

CORRECTION

Enter the engine identification number that is found on the engine tag. Do not enter any spaces if they exist in the engine identification number.

For engine tag location, see Service Information under General Information > General Information > Vehicle, engine and transmission ID and VIN location, Derivative and Usage. Some of the typical locations are front timing cover and side of the engine block near the oil pan.

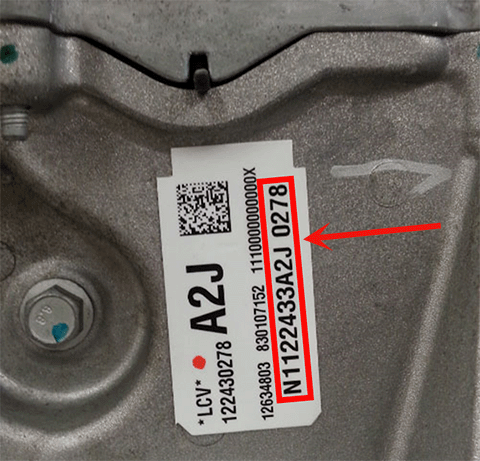

See the example below. The engine identification number is denoted by the red rectangle to illustrate which set of numbers to use. The actual tag on the engine does not have this red rectangle. The technician would type in N1122433A2J0278.

Courtesy of GENERAL MOTORS COMPANY

This document was created to make the information available as soon as possible. This document will be deleted if a service bulletin is created or Service Information is updated.

WARRANTY INFORMATION

Labor Operation	Description	Labor Time
2810075	Engine Control Module Reprogramming with SPS	Use Published Labor Time

Version	1
Modified	10/08/2018 - Created
