Turn Signal Switch Bracket Replacement

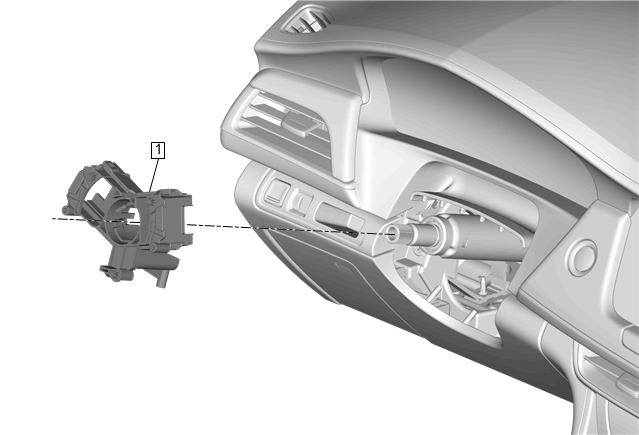

Fig 1: Turn Signal Switch Bracket
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedures
Steering Wheel Airbag Coil Replacement
Turn Signal Switch Replacement
Windshield Wiper and Washer Switch Replacement
1
Turn Signal Switch Bracket
Procedure
Release the retaining tabs and remove the turn signal switch bracket from the steering column.
