Electronic Suspension Control Module Replacement

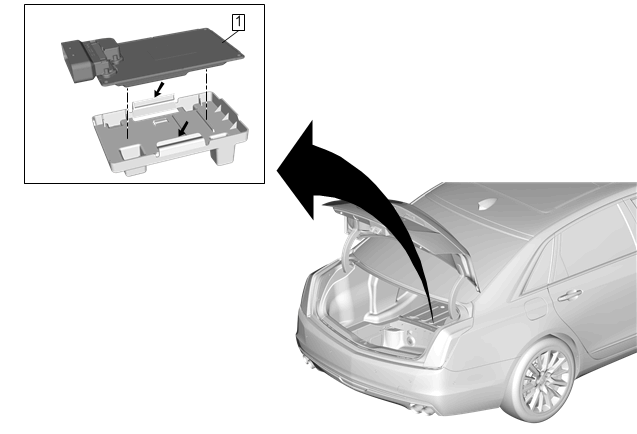

Fig 1: Electronic Suspension Control Module

GM4247275

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the rear compartment floor stowage compartment cover. Refer to Rear Compartment Floor Stowage Compartment Cover Replacement (Without HP9)

1

Electronic Suspension Control Module

Procedure

Disconnect the electrical connector.
Remove the electronic suspension control module by releasing it from the integral tabs as indicated on the electronic suspension control module bracket.
Program the electronic suspension control module. Refer to Control Module References
