Forward Range Radar Module Replacement

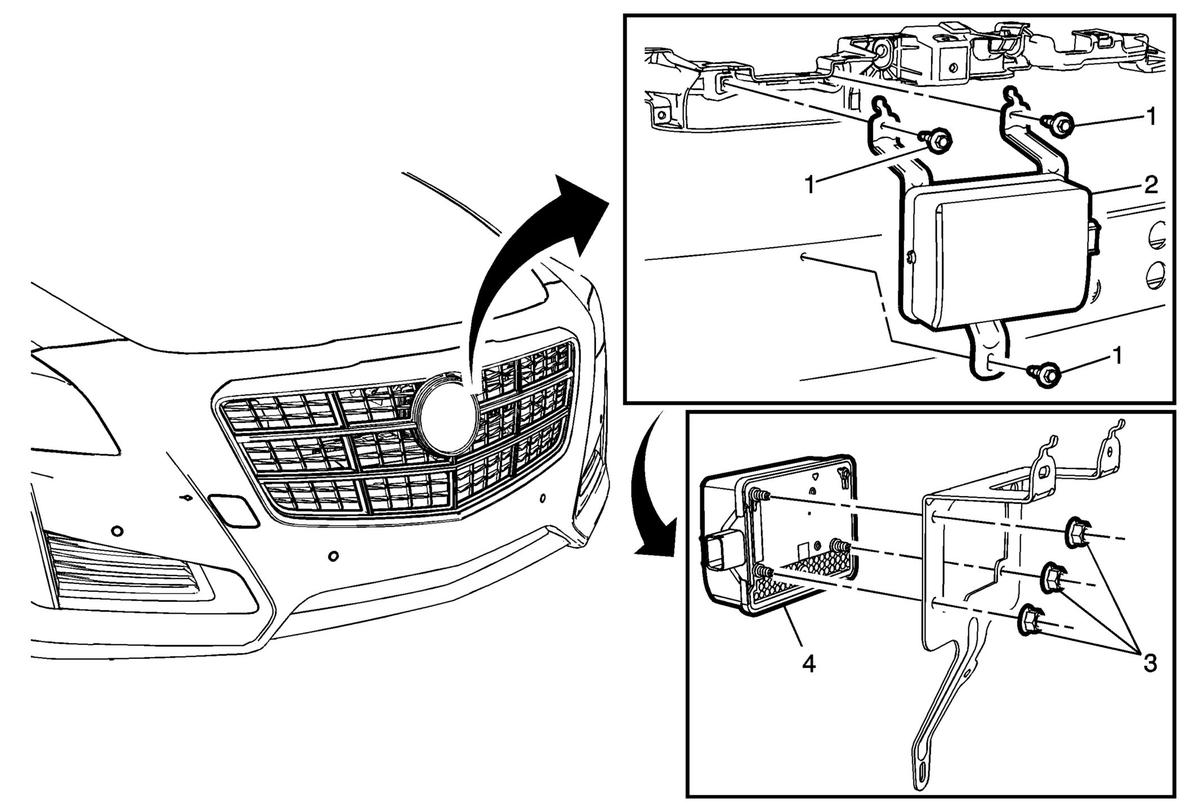

Fig 1: Forward Range Radar Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (CTS)Front Bumper Fascia Replacement (CTS-V) .
1	Forward Range Radar Module Bracket Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Forward Range Radar Module Bracket
3	Forward Range Radar Module Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution .
4	Forward Range Radar Module Procedure Disconnect the electrical connector. For programming and set up, refer to Control Module References .
