Video Processing Module Replacement

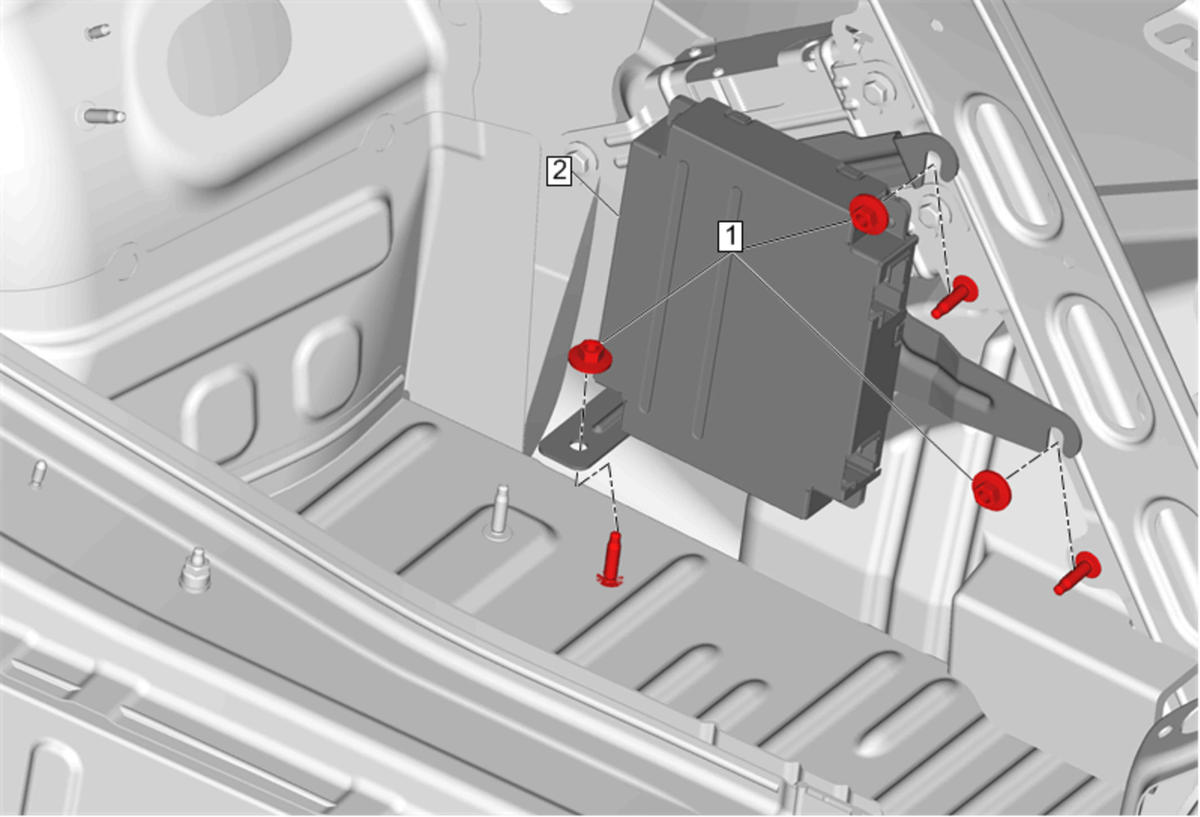

Fig 1: Video Processing Module
GM4176795Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Compartment Side Trim Replacement - Right Side
1 Video Processing Module
Procedure
Disconnect all electrical connectors.
