Theft Deterrent Module Replacement

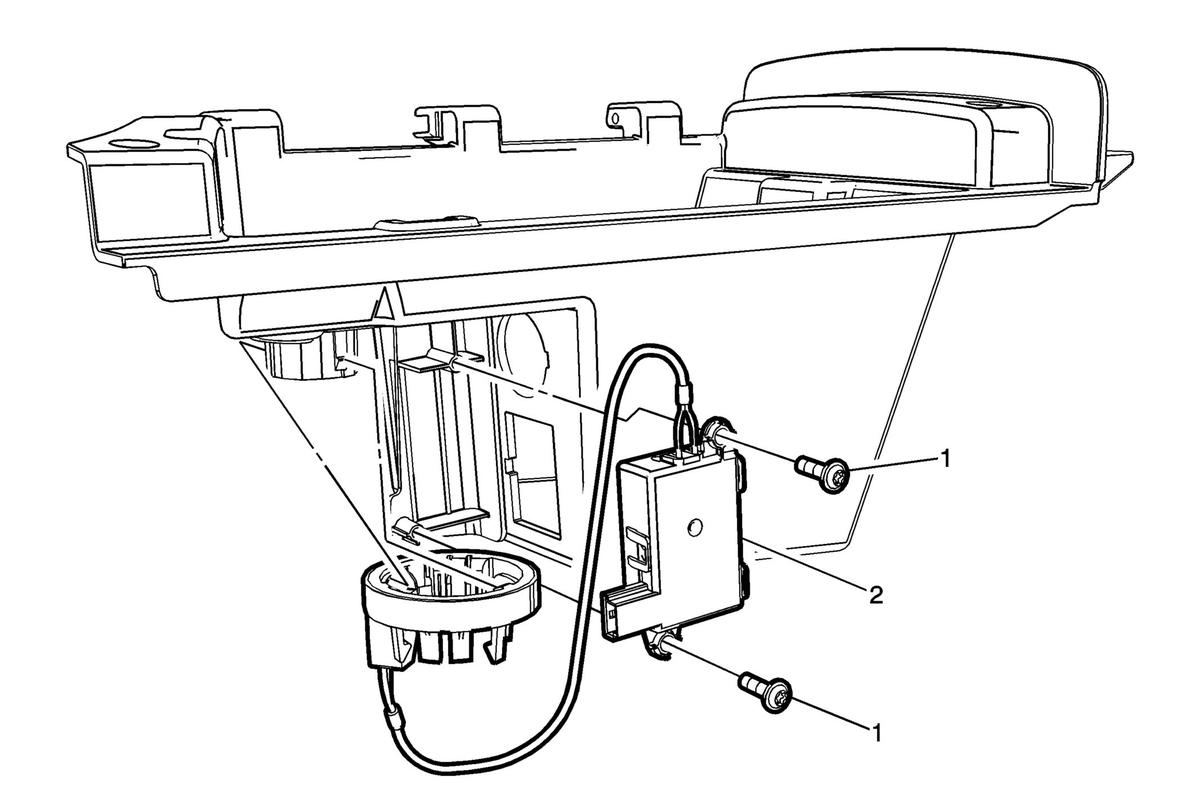

Fig 1: Theft Deterrent Module

GM3461701

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

Remove the front floor console compartment. Refer to Front Floor Console Compartment Replacement .
Remove the audio disc player, usb, auxiliary in and memory card receptacle. Refer to Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle Replacement .
Remove the accessory power receptacle. Refer to Accessory Power Receptacle Replacement (12 Volt)Accessory Power Receptacle Replacement (120 Volt) .

1

Theft Deterrent Module Fastener (Qty: 2)

CAUTION:

Refer to Fastener Caution .

2

Theft Deterrent Module

Procedure

Disengage tabs and slide downward to remove.
Refer to Control Module References for programming and set up procedures.
