Front Seat Heater Control Module Replacement (Base)

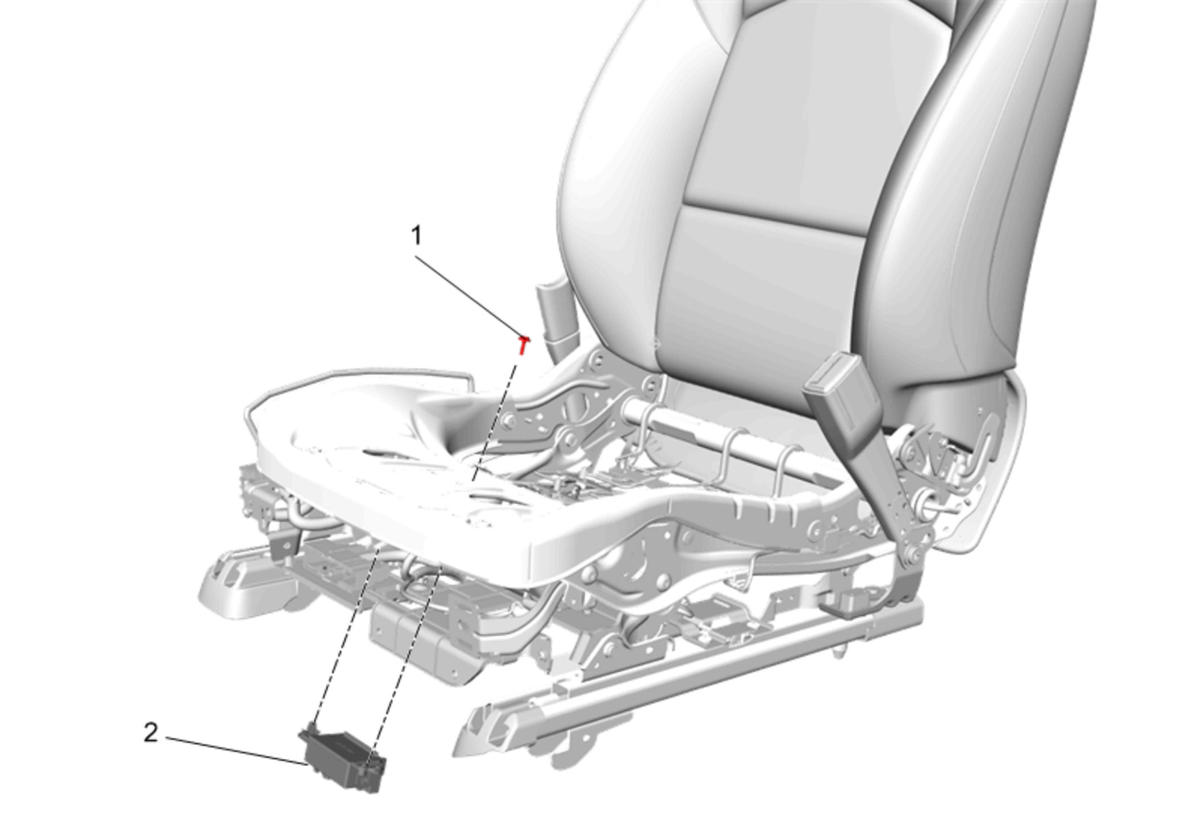

Fig 1: Front Seat Heater Control Module (Base)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Seat Cushion Cover and Pad Replacement (Without W2E)Front Seat Cushion Cover and Pad Replacement (With W2E)
1	Front Seat Heater Control Module Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Seat Heater Control Module Procedure Disconnect the electrical connectors. Release the retaining tabs.

Callout

Component Name

Front Seat Heater Control Module Fastener

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Seat Heater Control Module

Procedure
