Floor Console Components - Top

Items
1. P2 Transmission Shift Lever Position Indicator P2 Transmission Shift Lever Position Indicator
2. S2 Transmission Manual Shift Switch S2 Transmission Manual Shift Switch
3. S86 Vehicle Stability Control Switch S86 Vehicle Stability Control Switch
4. E25 Ashtray Lamp E25 Ashtray Lamp
5. X81B Accessory Power Receptacle - 220V AC (KI7) X81B Accessory Power Receptacle - 220V AC X1 (KI7)X81B Accessory Power Receptacle - 220V AC X2 (KI7)
6. E28 Center Console Compartment Lamp E28 Center Console Compartment Lamp
7. X80A Accessory Power Receptacle - Center Console 1 X80A Accessory Power Receptacle - Center Console 1
8. E1AC Accent Lamp - Center Console Cupholder E1AC Accent Lamp - Center Console Cupholder
9. T10J Keyless Entry Antenna - Center Console Front T10J Keyless Entry Antenna - Center Console Front
10. A34 HVAC Controls - Auxiliary (CJ4) A34 HVAC Controls - Auxiliary
11. X80B Accessory Power Receptacle - Center Console 2 X80B Accessory Power Receptacle - Center Console 2
12. X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 X83 Auxiliary Audio Input X2
13. X80D Accessory Power Receptacle - Center Console Compartment X80D Accessory Power Receptacle - Center Console Compartment
14. X81 Accessory Power Receptacle - 110V AC (KI6) X81 Accessory Power Receptacle - 110V AC X1 X81 Accessory Power Receptacle - 110V AC X2

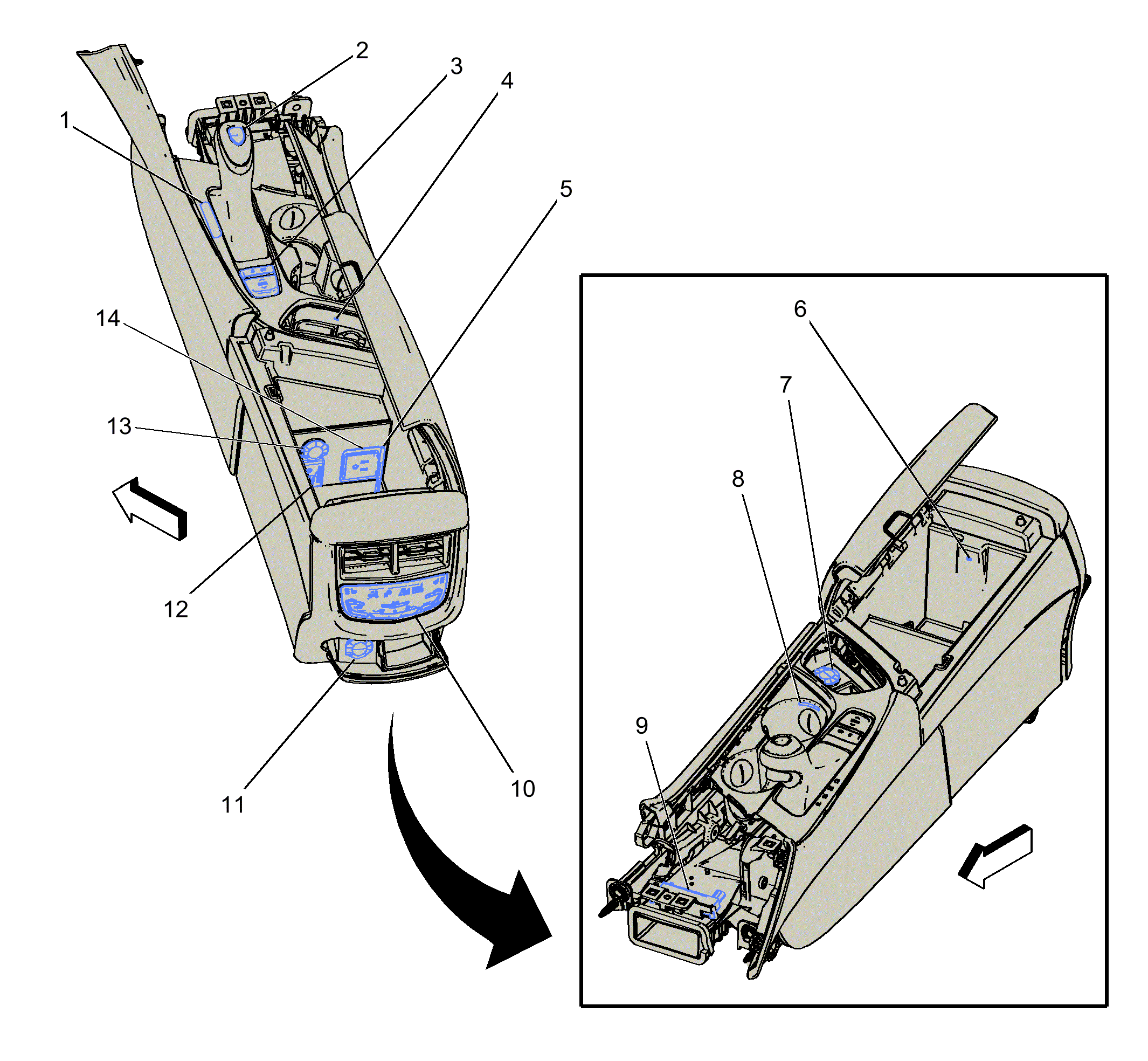

Fig 1: Floor Console Components - Top

Courtesy of GENERAL MOTORS COMPANY
