Instrument Panel Components - Face

Items
1. P43 Collision Alert Indicators (UEU-UV6) P43 Collision Alert Indicators
2. P16 Instrument Cluster P16 Instrument Cluster X1 P16 Instrument Cluster X2 P16 Instrument Cluster X2 (UDV)P16 Instrument Cluster X4
3. P29 Head-Up Display (UV6) P29 Head-Up Display X1 P29 Head-Up Display X2
4. S38 Ignition Mode Switch S38 Ignition Mode Switch
5. B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor
6. P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel
7. S48C Multifunction Switch 1 - Instrument Panel S48C Multifunction Switch 1 - Instrument Panel
8. P17 Info Display Module P17 Info Display Module X1 P17 Info Display Module X2 P17 Info Display Module X3
9. S48D Multifunction Switch 2 - Instrument Panel S48D Multifunction Switch 2 - Instrument Panel
10. F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1 F101 Passenger Instrument Panel Air Bag X2
11. E1H Accent Lamp - Right Instrument Panel (TSP) E1H Accent Lamp - Right Instrument Panel
12. X92 USB Receptacle (IO5/IO6) X92 USB Receptacle
13. T22 Mobile Device Wireless Charger Module (K4C) T22 Mobile Device Wireless Charger Module
14. A20 Radio/HVAC Controls
15. E1GA Accent Lamp - Left Middle Instrument Panel (TSP) E1GA Accent Lamp - Left Middle Instrument Panel
16. S71 Steering Column Tilt and Telescope Switch (N38) S71 Steering Column Tilt and Telescope Switch
17. S27 Head-Up Display Switch (UV6) S27 Head-Up Display Switch
18. S91 Park Brake Control Switch S91 Park Brake Control Switch
19. E1G Accent Lamp - Left Instrument Panel (TSP) E1G Accent Lamp - Left Instrument Panel

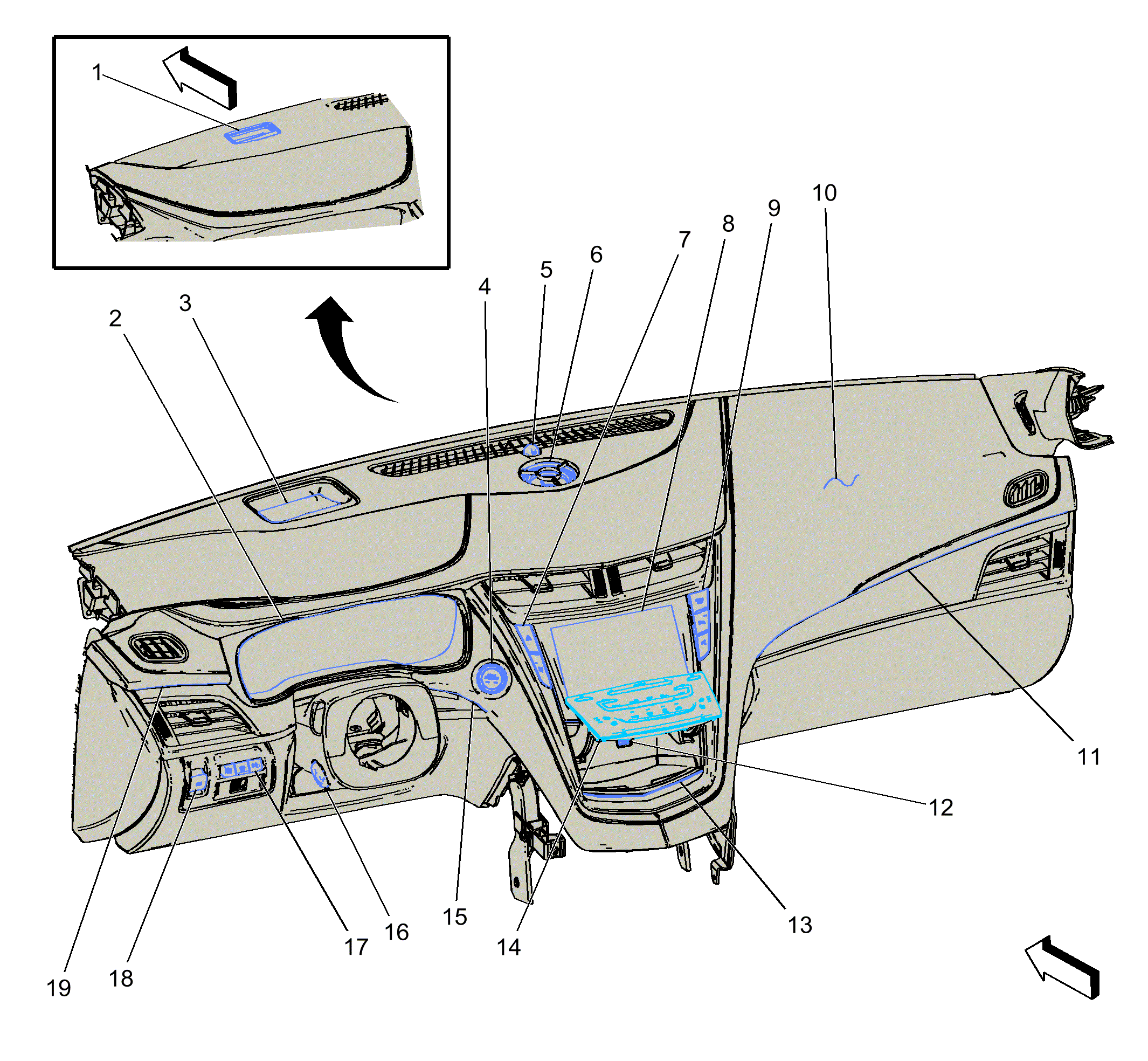

Fig 1: Instrument Panel Components - Face

Courtesy of GENERAL MOTORS COMPANY
