Instrument Panel Components - Rear

Items
1. A11 Radio A11 Radio X1 (IO5/IO6)A11 Radio X1 (IOS/IOT)A11 Radio X10 (IOS/IOT)A11 Radio X2 (IO5/IO6)A11 Radio X2 (IOS/IOT)A11 Radio X2 (IO5/IO6)A11 Radio X4 (IO5/IO6)A11 Radio X2 (IO5/IO6)A11 Radio X5 (IO5/IO6)A11 Radio X6 (IO5/IO6+U2K/U2M)A11 Radio X6 (IOS/IOT)A11 Radio X7 (IOS/IOT)A11 Radio X9 (IO5/IO6)A11 Radio X9 (IOS/IOT)
2. P19V Speaker - Right Front Tweeter P19V Speaker - Right Front Tweeter
3. F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1 F101 Passenger Instrument Panel Air Bag X2
4. P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel
5. P43 Collision Alert Indicators (UEU-UV6) P43 Collision Alert Indicators
6. P19H Speaker - Left Front Tweeter P19H Speaker - Left Front Tweeter
7. X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel X1
8. K9 Body Control Module K9 Body Control Module X1 K9 Body Control Module X2 K9 Body Control Module X3 K9 Body Control Module X4 K9 Body Control Module X5 K9 Body Control Module X6 K9 Body Control Module X7
9. K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 K56 Serial Data Gateway Module X2
10. K60 Steering Column Lock Module (ULS) K60 Steering Column Lock Module
11. A33 Media Disc Player (WCN) A33 Media Disc Player ((WCN))
12. K74 Human Machine Interface Control Module K74 Human Machine Interface Control Module X1 K74 Human Machine Interface Control Module X2 K74 Human Machine Interface Control Module X3 K74 Human Machine Interface Control Module X4 K74 Human Machine Interface Control Module X5 K74 Human Machine Interface Control Module X7
13. K33 HVAC Control Module K33 HVAC Control Module X1 K33 HVAC Control Module X2 K33 HVAC Control Module X3 K33 HVAC Control Module X4
14. M91 Instrument Panel Compartment Door Unlatch Actuator M91 Instrument Panel Compartment Door Unlatch Actuator

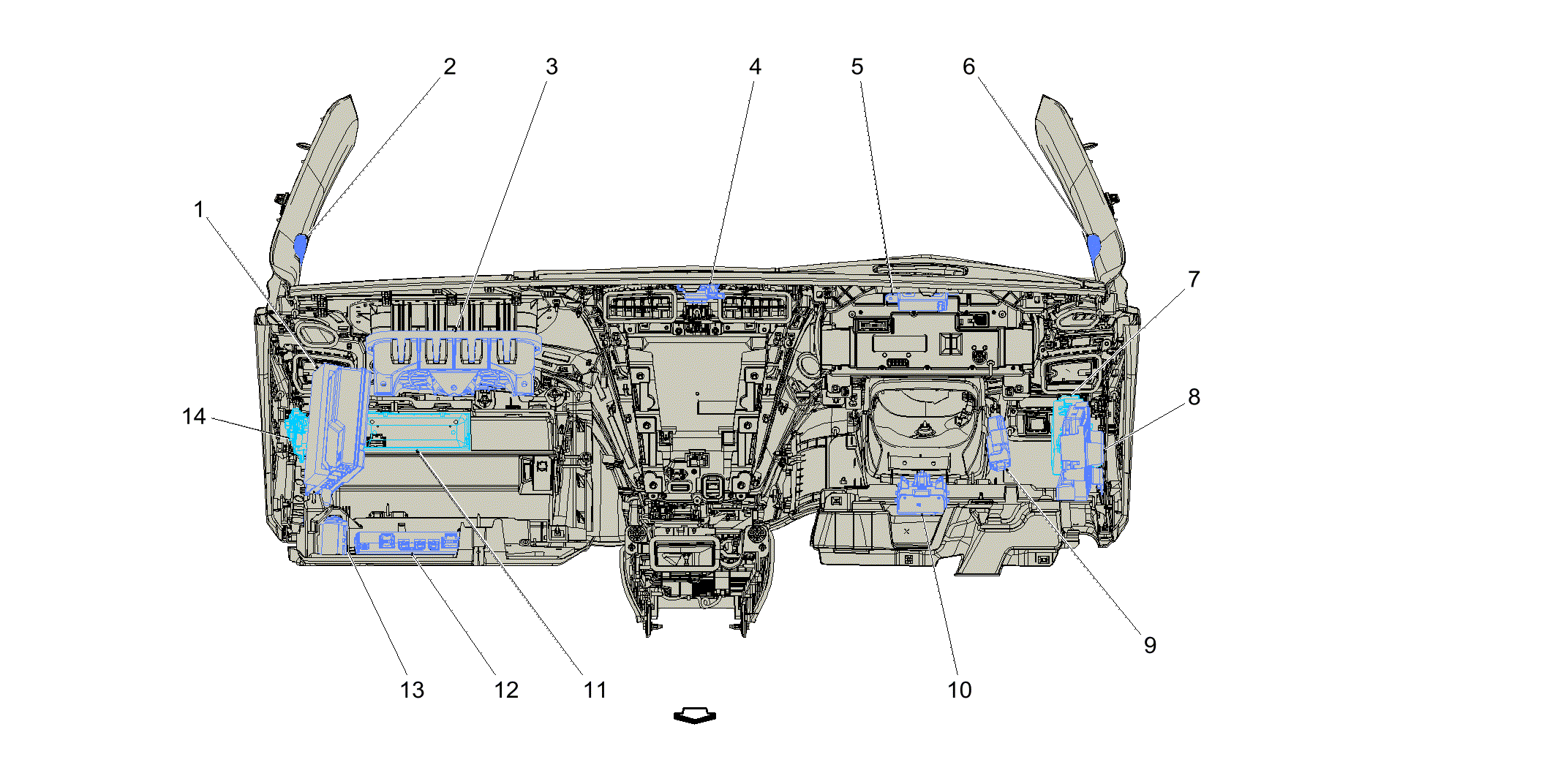

Fig 1: Instrument Panel Components - Rear

Courtesy of GENERAL MOTORS COMPANY
