Vehicle Performance Data Recorder Replacement

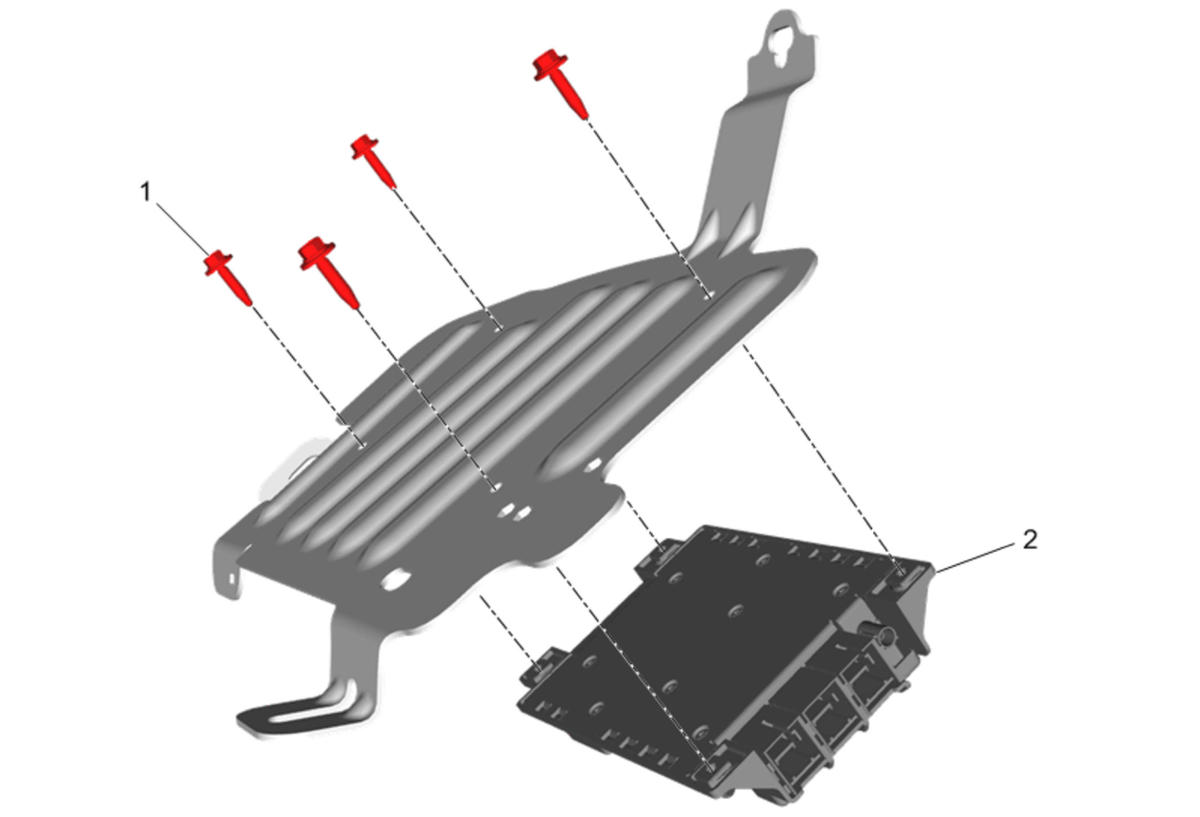

Fig 1: Vehicle Performance Data Recorder
GM4175356Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Vehicle Performance Data Recorder Bracket Replacement
1 Vehicle Performance Data Recorder Fastener (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
1 N.m (9 lb in)
2 Vehicle Performance Data Recorder
