Sunroof Air Deflector Replacement

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

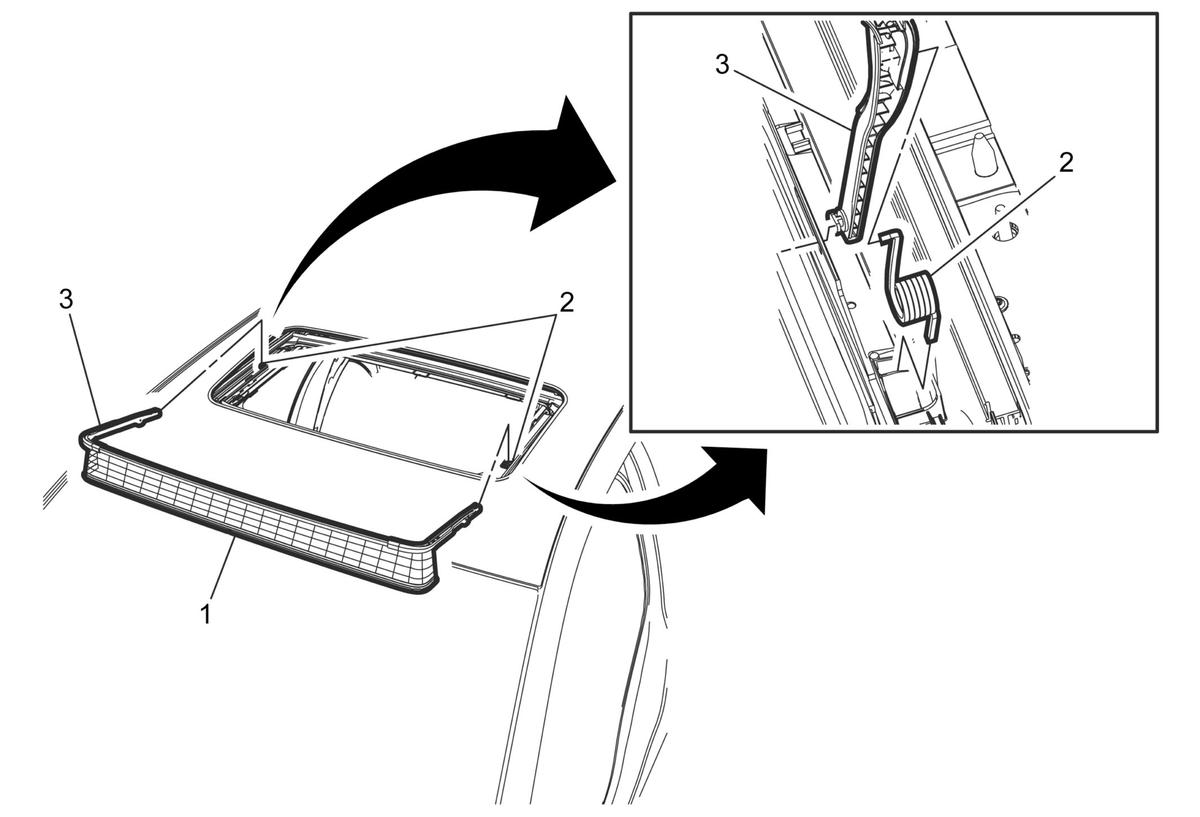

Fig 1: Sunroof Air Deflector

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Sunroof Air Deflector Lower Retainer Rubber Strip Procedure Place sunshade in the full open position. Place air deflector in the straight up position and release lower rubber strip.
2	Sunroof Air Deflector Spring (Qty :2) Procedure Release air deflector springs from air deflector.
3	Sunroof Air Deflector Procedure Slide air deflector to align "T" shape tab on air deflector to guide. Pull outward on air deflector in order to disengage air deflector from guides on sunroof frame.

Callout

Component Name

Sunroof Air Deflector Lower Retainer Rubber Strip

Procedure

Place sunshade in the full open position.
Place air deflector in the straight up position and release lower rubber strip.

Sunroof Air Deflector Spring (Qty :2)
Procedure
Release air deflector springs from air deflector.

Sunroof Air Deflector

Procedure

Slide air deflector to align "T" shape tab on air deflector to guide.
Pull outward on air deflector in order to disengage air deflector from guides on sunroof frame.
