Sunroof Window Replacement (Front)

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

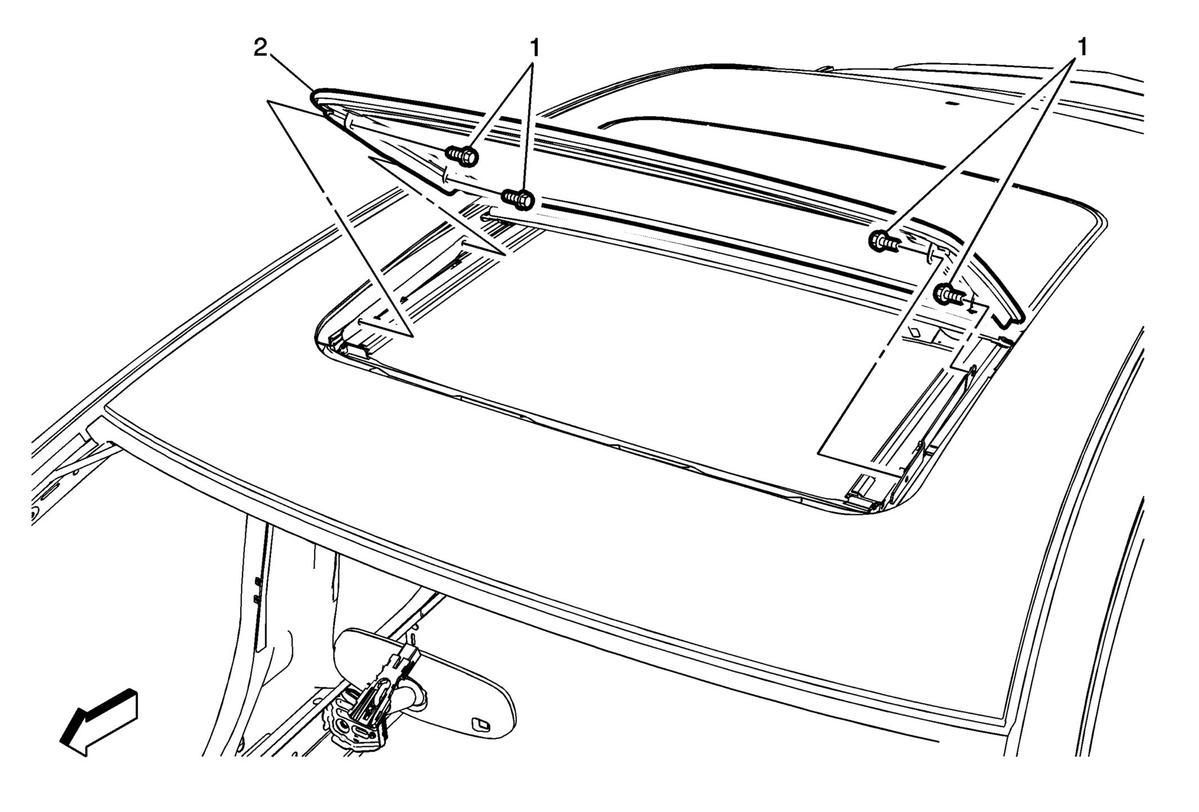

Fig 1: Sunroof Window & Screws - Front

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Sunroof Window Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure Open the sunshade to the full open position. Place the sunroof in the vent position to access the screws. Reposition sunroof seal as needed to access screws. Lift the sunroof window out of the frame. Tighten 5 N.m (44 lb in)
2	Front Sunroof Window Procedure Sunroof window height and opening fit adjustment. Refer to Sunroof Window Height and Opening Fit Adjustment . Water test to ensure that sunroof window and window seal is fitting properly in the close position.

Callout

Component Name

Front Sunroof Window Screw (Qty: 4)

CAUTION: Refer to Fastener Caution .

Procedure

Open the sunshade to the full open position.
Place the sunroof in the vent position to access the screws.
Reposition sunroof seal as needed to access screws.
Lift the sunroof window out of the frame.

Tighten
5 N.m (44 lb in)

Front Sunroof Window

Procedure

Sunroof window height and opening fit adjustment. Refer to Sunroof Window Height and Opening Fit Adjustment .
Water test to ensure that sunroof window and window seal is fitting properly in the close position.
