Steering Linkage Inner Tie Rod Replacement

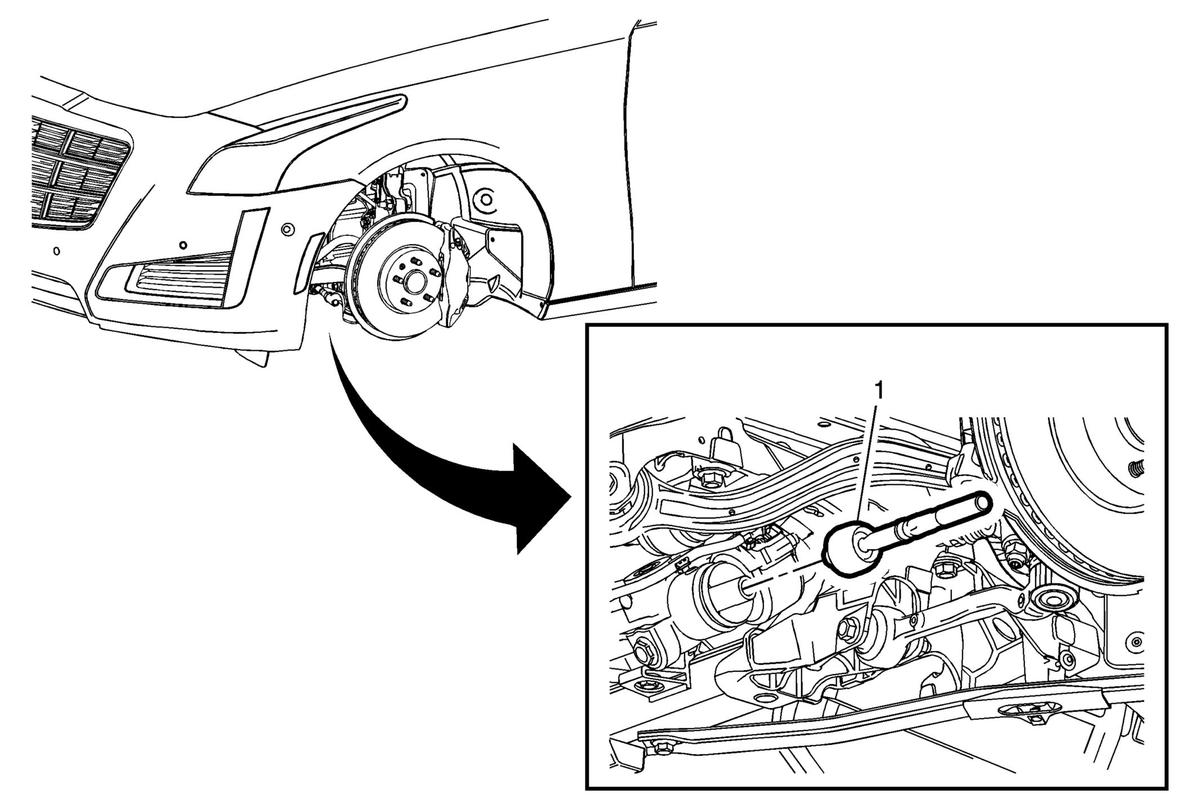

Fig 1: Steering Linkage Inner Tie Rod

GM3415305

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Steering Gear Boot Replacement (Non V-Series) Steering Gear Boot Replacement (V-Series)

1

Steering Linkage Inner Tie Rod

CAUTION:

Refer to Component Fastener Tightening Caution .

Procedure

Place a 42 mm wrench on the flats of the steering linkage inner tie rod and rotate the tie rod counterclockwise to remove it from the steering gear rack.
Place a 42 mm wrench on the flats of the steering linkage inner tie rod and rotate the tie rod clockwise to install to install it to the steering gear rack.
Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment

Tighten
105 N.m (77 lb ft)
