Auxiliary Chassis Control Module Replacement - Trailer Brake

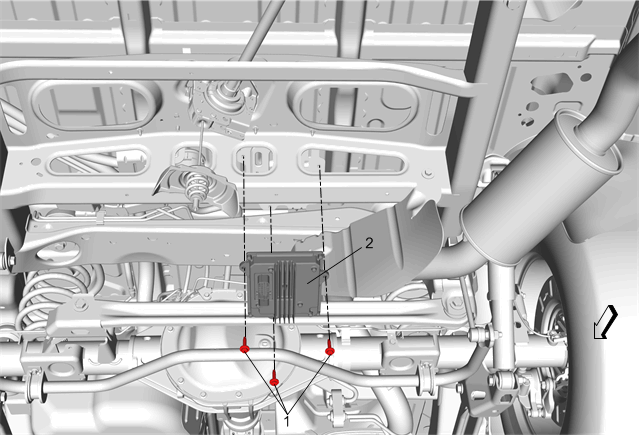

Fig 1: Auxiliary Chassis Control Module - Trailer Brake

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the spare tire. Refer to Spare Wheel Hoist Replacement
1	Auxiliary Chassis Control Module Bolt (Qty: 3) CAUTION: Refer to Fastener Caution Tighten 9 N.m (80 lb in)
2	Auxiliary Chassis Control Module - Trailer Brake Procedure Disconnect the electrical connector. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Remove the spare tire. Refer to Spare Wheel Hoist Replacement

Auxiliary Chassis Control Module Bolt (Qty: 3)

CAUTION:

Tighten
9 N.m (80 lb in)

Auxiliary Chassis Control Module - Trailer Brake

Procedure

Disconnect the electrical connector.
Perform the necessary programming and setup procedure: Control Module References
