Active Safety Control Module Bracket Replacement

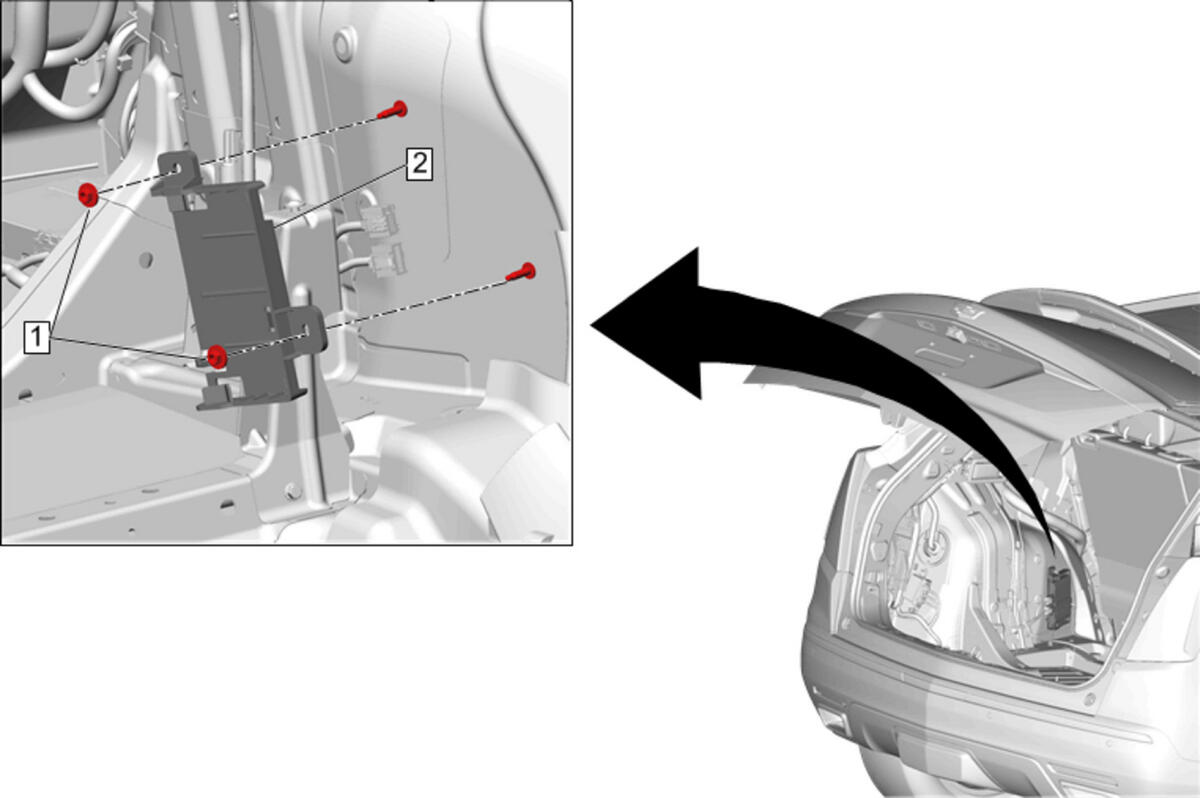

Fig 1: Active Safety Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Quarter Lower Rear Trim Panel (Left Side). Refer to Quarter Lower Rear Trim Panel Replacement (Left Side)
1	Active Safety Control Module Bracket Nut (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 9 N.m (80 lb in)
2	Active Safety Control Module Bracket Procedure Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Remove Quarter Lower Rear Trim Panel (Left Side). Refer to Quarter Lower Rear Trim Panel Replacement (Left Side)

Active Safety Control Module Bracket Nut (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Active Safety Control Module Bracket

Procedure
