Forward Collision Alert Display Replacement

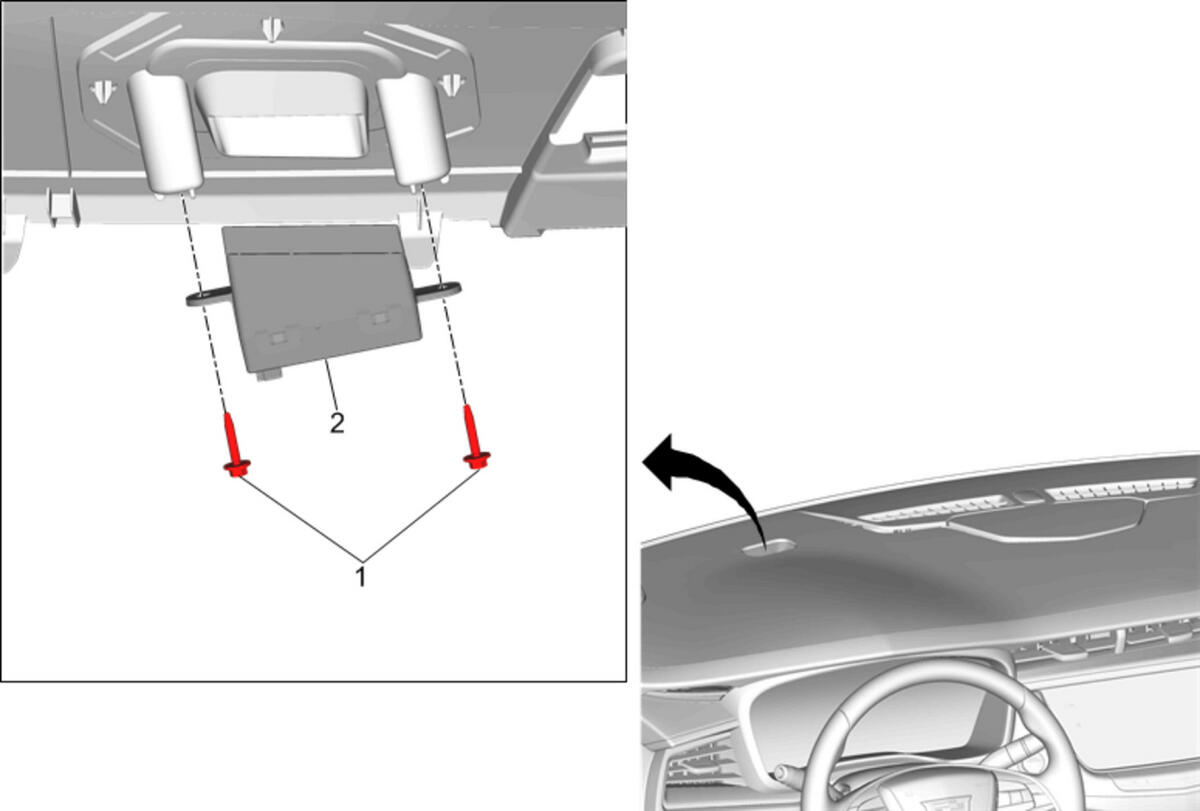

Fig 1: Forward Collision Alert Display
GM4296745Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Instrument Panel Instrument Cluster Hood. Refer to Instrument Panel Instrument Cluster Hood Replacement
1 Forward Collision Alert Display Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Forward Collision Alert Display
