Forward Range Radar Bracket Replacement

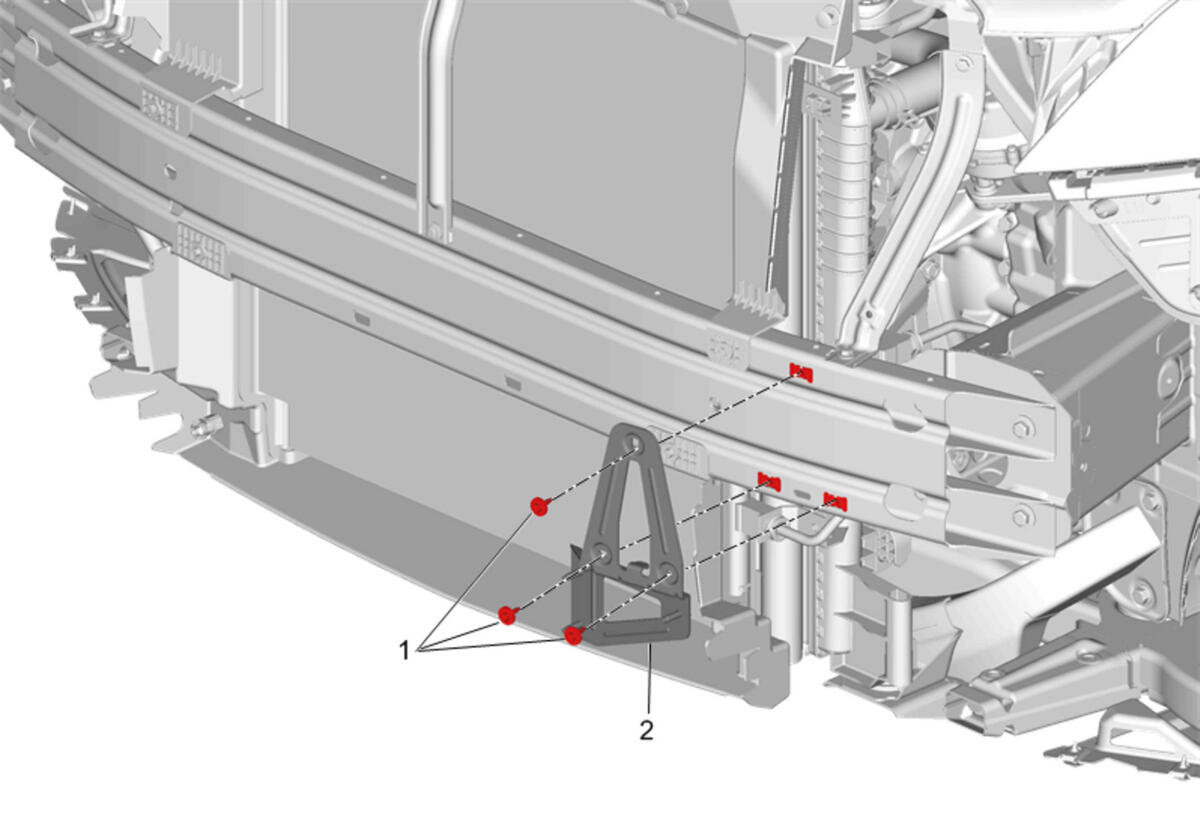

Fig 1: Forward Range Radar Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Forward Range Radar Sensor. Refer to Forward Range Radar Sensor Replacement
1	Forward Range Radar Bracket Bolt (Qty: 3) CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Forward Range Radar Bracket
