Front View Camera Replacement

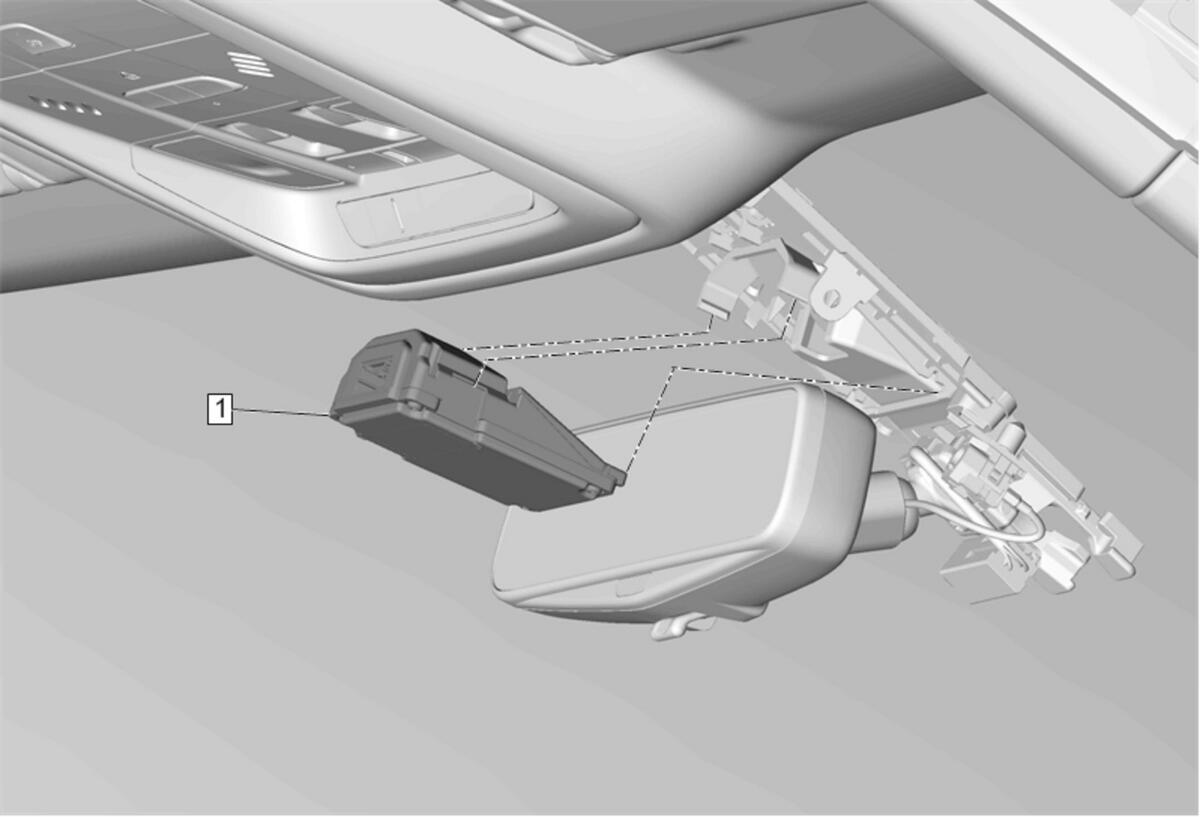

Fig 1: Front View Camera
GM4287631Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Windshield Multifunction Sensor Mount Bracket Cover. Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement (with UEU)Windshield Multifunction Sensor Mount Bracket Cover Replacement (without UEU)
1 Front View Camera

Procedure

  1. Release the retaining tabs.
  2. Disconnect the electrical connector.
  3. Perform the necessary programming and setup procedure: Control Module References
