Parking Assist Control Module Replacement

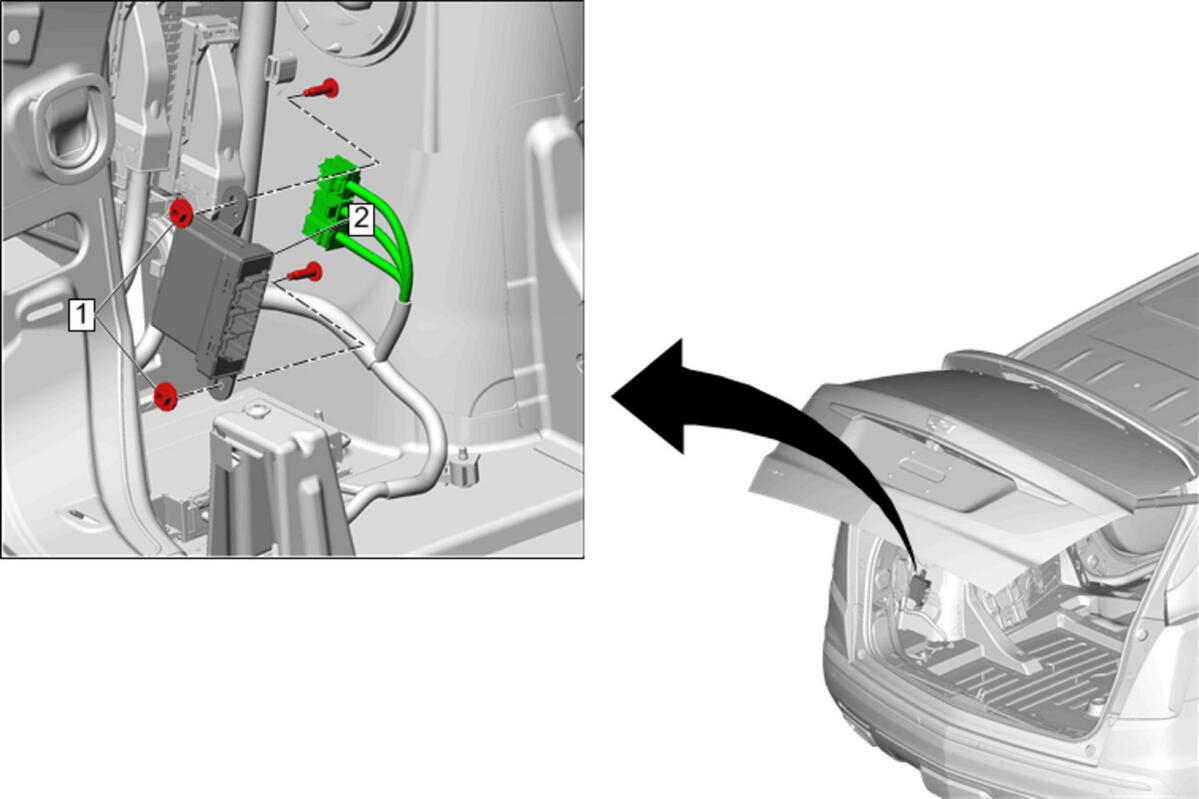

Fig 1: Parking Assist Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Quarter Lower Rear Trim Panel (Left Side). Refer to Quarter Lower Rear Trim Panel Replacement (Left Side)
1	Parking Assist Alarm Control Module Nut (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 4.5 N.m (40 lb in)
2	Parking Assist Control Module Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Remove Quarter Lower Rear Trim Panel (Left Side). Refer to Quarter Lower Rear Trim Panel Replacement (Left Side)

Parking Assist Alarm Control Module Nut (Qty: 2)

CAUTION:

Tighten
4.5 N.m (40 lb in)

Parking Assist Control Module

Procedure

Disconnect the electrical connectors.
Perform the necessary programming and setup procedure: Control Module References
